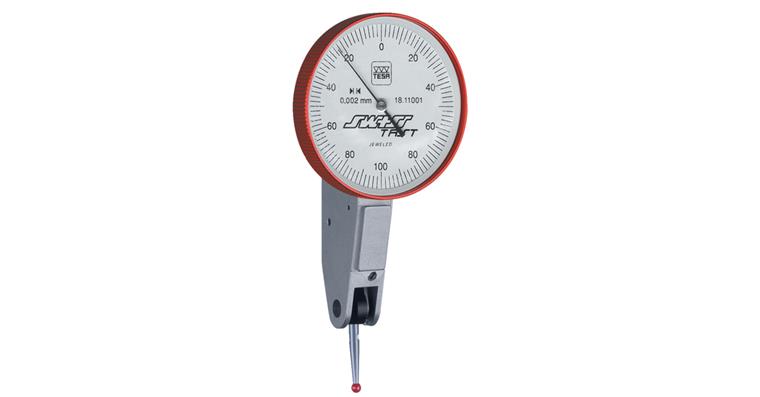

SWISSTAST lever gauge probe, 0.002 mm, A38 mm diameter, with ruby ball

SWISSTAST lever gauge probe, 0.002 mm, A38 mm diameter, with ruby ball

1001331358 SWISSTAST lever gauge probe, 0.002 mm, A38 mm diameter, with ruby ball
Item no: 1001331 358

Online price:

Available in 6-8 working days.

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts of boreholes and aligning workpieces.

Execution
  • Rotating dial
  • Anti-magnetic components
  • Automatic switching of probing direction
  • Measuring mechanism on ruby bearings
  • Housing made from one piece, brushed chromium-plated
  • Sonde de mesure chromée

Advantage
3 dovetail mounting surfaces

Delivery
Measuring probe with 2 mm ball diameter, 8 mm clamping shaft diameter, key disc, in plastic case


Brand: TESA TECHNOLOGY
Length measuring range: 0,2 mm
Scale value: 0,002 mm
Diameter: 38 mm
Length of measuring sensor from centre of ball: 12,5 mm
Measurement force: 0,15 N
Connection thread: M1.4
Ball diameter: 2 mm
Pivot range of measuring sensor: 240 Degree
DIN: 2270

Manufacturer part no.: 01811001

EAN no.: 7630041110586

Product Datasheet
