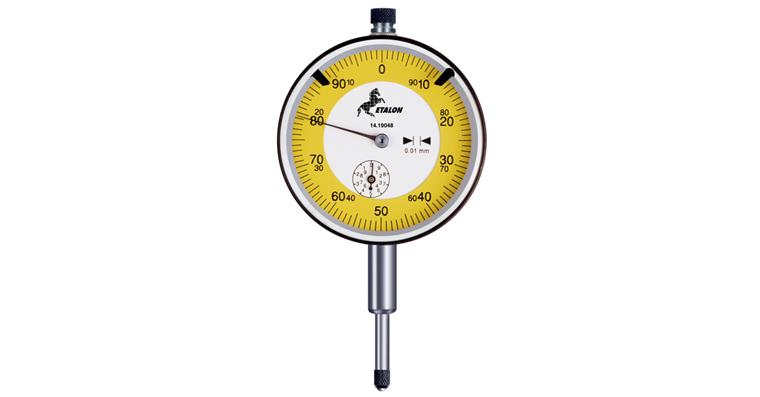

Analoge Messuhr, 10 mm, 0,01 mm, Ø 58 mm, IP40

Analoge Messuhr, 10 mm, 0,01 mm, Ø 58 mm, IP40

Analoge Messuhr, 10 mm, 0,01 mm, Ø 58 mm, IP40
Item no: 1001331 102

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness and position measurements.

Execution
  • Housing made of metal, clamping shank and measuring pins made of stainless steel
  • Thread: M2.5 x 0.45 mm
  • Rotating dial
  • Adjustable tolerance marks

Delivery
1x dial gauge with gauge slide dia. 3.175 mm, mounted
1x declaration of conformity


Brand: TESA TECHNOLOGY
Length measuring range: 10 mm
Type: Skale 0-50-100
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 58 mm
Error limit: 0,015 mm
Shank diameter: 8 mm
IP protection class: IP 40
Rotating housing: Yes
Min./max. measurement force: 0.56-0.84 N
DIN: 878
Calibration Group: C
Scale value: 0,01 mm

Manufacturer part no.: 01419048

EAN no.: 7630041109900

Product Datasheet
