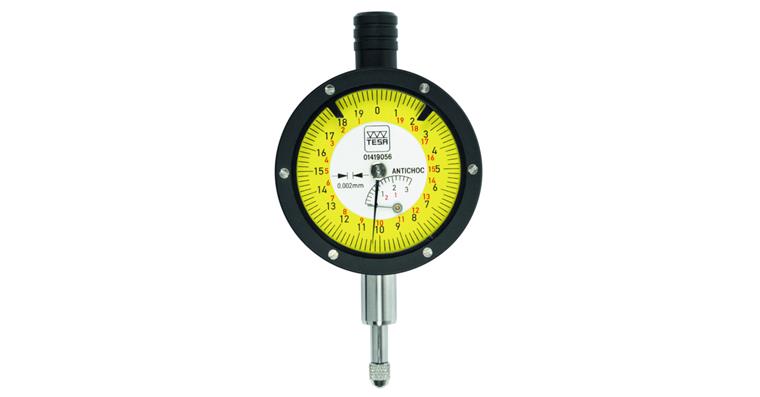

Analoge Messuhr, 3 mm, 0,002 mm, Ø 44,5 mm, IP40

Analoge Messuhr, 3 mm, 0,002 mm, Ø 44,5 mm, IP40

Analoge Messuhr, 3 mm, 0,002 mm, Ø 44,5 mm, IP40
Item no: 1001336 726

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness and position measurements.

Execution
  • Housing made of metal, clamping shank and measuring pins made of stainless steel
  • Thread: M2.5 x 0.45 mm
  • Rotating dial
  • Adjustable tolerance marks


Brand: TESA TECHNOLOGY
Length measuring range: 3 mm
Type: Skale 0-10-20
Digit increment: 0,002 mm
Measurement travel of one pointer revolution: 0,2 mm
Outer diameter: 44,5 mm
Error limit: 0,007 mm
Shank diameter: 8 mm
IP protection class: IP 40
Shock protection: Yes
Rotating housing: Yes
Min./max. measurement force: 0.88-1.32 N
Calibration Group: C
Scale value: 0,002 mm

Manufacturer part no.: 01419056

Product Datasheet
