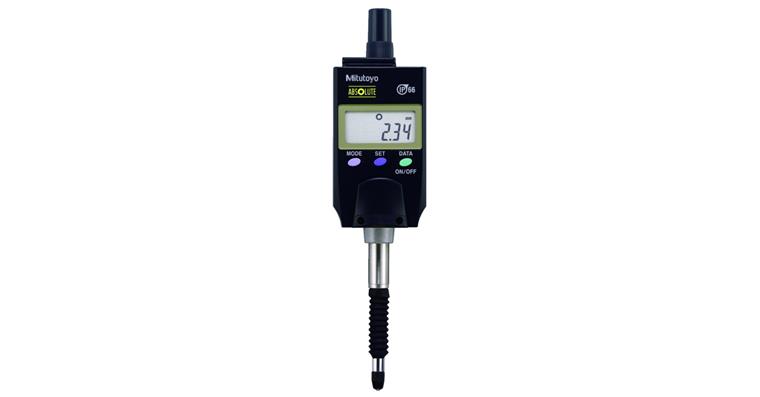

Messuhr Digimatic ID-N 12,7 mm 0,01 mm IP66 schmale Ausführung

Messuhr Digimatic ID-N 12,7 mm 0,01 mm IP66 schmale Ausführung

Messuhr Digimatic ID-N 12,7 mm 0,01 mm IP66 schmale Ausführung
Item no: 1001352 887

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements. Especially for installation in devices with limited space.

Execution
  • Slim and robust dial gauge, back-plunger model
  • Graphic display in the event that tolerance is exceeded or undershot.
  • Flexible installation due to switchable orientation of display
  • Alarm: Low voltage, counting value error, overflow error, tolerance limit setting error
  • Gauge slide: Carbide ball, thread, M 2.5 x 0.45 mm


Brand: MITUTOYO
Length measuring range: 12,7 mm
Digit increment: 0,01 mm
Error limit: 0,02 mm
Data transmission type: DIGIMATIC
IP protection class: IP 66
Absolute function: Yes
Preset function: Yes
Shank diameter: 8 mm
Rotating housing: No
Reversible counting direction: Yes
Digit height: 6,2 mm
Functions: Absolute function | Hold-function (AE lock) | On/Off | Preset function | Tolerance value entry | Reversal of counting direction
Calibration Group: CD

Manufacturer part no.: 543-570

Product Datasheet
