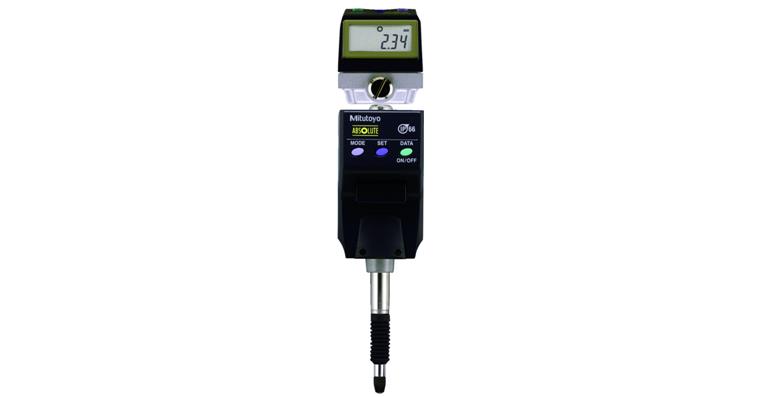

Messuhr Digimatic ID-B 12,7 mm 0,01 mm IP66 schmale Ausführung

Messuhr Digimatic ID-B 12,7 mm 0,01 mm IP66 schmale Ausführung

Messuhr Digimatic ID-B 12,7 mm 0,01 mm IP66 schmale Ausführung
Item no: 1001352 889

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements. Especially for installation in devices with limited space.

Execution
  • Narrow construction, ideal for multiple point measurements
  • Measuring pin on the back, display as top view
  • Flexible installation due to switchable orientation of display.
  • Equipped with the ABSOLUTE system. The reference point does not need to be reset after switching off.
  • Gauge slide: Carbide ball, thread, M 2.5 x 0.45 mm
  • Alarm: Low voltage, counting value error, overflow error, tolerance limit setting error


Brand: MITUTOYO
Length measuring range: 12,7 mm
Digit increment: 0,01 mm
Error limit: 0,02 mm
Data transmission type: DIGIMATIC
IP protection class: IP 66
Absolute function: Yes
Preset function: Yes
Shank diameter: 8 mm
Rotating housing: No
Reversible counting direction: Yes
Digit height: 6,2 mm
Functions: Absolute function | On/Off | Preset function | Tolerance value entry | Reversal of counting direction | Data (Data transfer)
Calibration Group: CD

Manufacturer part no.: 543-580

Product Datasheet
Versions
loading
Keywords: Digitalmessuhren,Messuhren,Digitale Messuhren,Messuhr,Indicator,Mess-Uhren,Digital-Messuhren,Elektro-Messuhren,Elektromessuhren,
