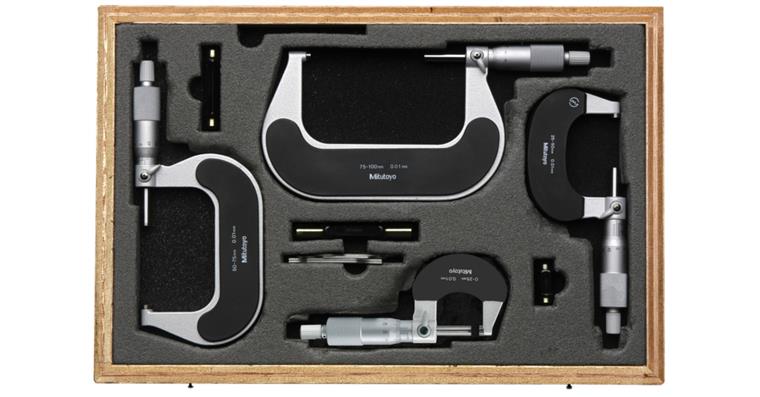

Micrometer set with setting gauges MR 0-100 mm in box

Micrometer set with setting gauges MR 0-100 mm in box

Micrometer set with setting gauges MR 0-100 mm in box
Item no: 1001354 723

Online price:

Available in 11-13 working days.

Application
For measuring shaft diameters, external dimensions etc.

Execution
  • Carbide-tipped and micro-lapped measuring surfaces
  • Semi-gloss chrome-plated thimble and sleeve, dia. 18 mm

Delivery
Incl. box, adjustment wrench, setting gauge (from 25 mm), up to 50 mm with factory certificate


Brand: MITUTOYO
Min./max. length measuring range: 0-100 mm
Digit increment: 0,01 mm
Number of bracket measuring screws: 4 PCS
Composition of set: 0-25 mm | 25-50 mm | 50-75 mm | 75-100 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,5 mm
Min./max. measurement force: 5-10 N
Spindle clamping: Yes
Reading Length Metrology: 0,01 mm
Number of setting dimensions: 3 PCS
Calibration Group: D | E

Manufacturer part no.: 102-911-40

Product Datasheet
Keywords: Bügelmessschraube , Bügelmeßschraube , Meßschraube , Messschraube , Mikrometer , Mikrometerschraube
