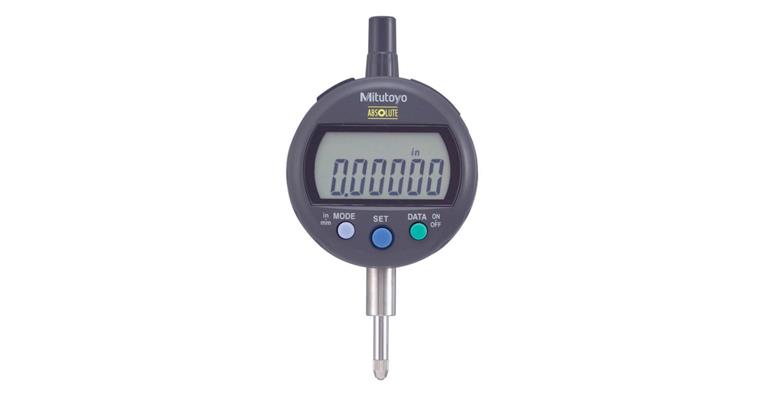

Digital dial gauge ID-C112EXB 543-392B

Digital dial gauge ID-C112EXB 543-392B

Digital dial gauge ID-C112EXB 543-392B
Item no: 1001357 172

Online price:

Available in 11-13 working days.

Execution
  • With the ABSOLUTE system
  • One-time setting of the starting position, which then remains the absolute zero point until the next battery change
  • Measurement precision even at the highest travel speed
  • Effortless reading with large display digits
  • Display can be rotated 330°
  • Keypad lock to protect against unauthorised use
  • Simple calculations with the formula Ax (x=spindle travel)


Brand: MITUTOYO
Length measuring range: 12,7 mm
Type: 543-392B
Digit increment: 0,001 mm
Repeat accuracy: 0,002 mm
IP protection class: IP 42
Preset function: Yes
Shank diameter: 9,52 mm
Rotating housing: Yes
Reversible counting direction: Yes
Digit height: 11 mm
Functions: ABS function | Preset function | On/Off
Calibration Group: CD

Manufacturer part no.: 543-702B

Product Datasheet
