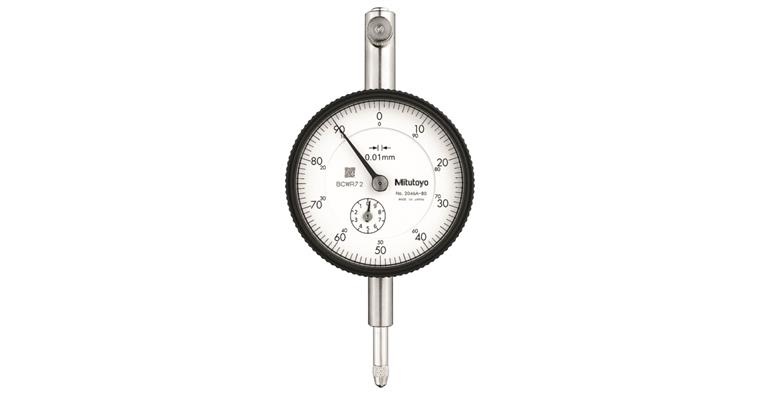

Messuhr metrisch 10 mm, 0,01mm, mit Öse, Schleppzeiger

Messuhr metrisch 10 mm, 0,01mm, mit Öse, Schleppzeiger

Messuhr metrisch 10 mm, 0,01mm, mit Öse, Schleppzeiger
Item no: 1001358 942

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Standard dial gauge with outer ring, dia. 57 mm
  • Gauge slide: carbide-tipped, thread: M 2.5 x 0.45 mm
  • In the model with adjustment point, the position of the indicator can be adjusted with the top button independently of the position of the measuring pin
  • In the model with trailing pointer, a mechanism keeps the indicator and measuring pin in the maximum depth position and displays the maximum value


Brand: MITUTOYO
Length measuring range: 10 mm
Type: Rückwand mit Öse und Schleppzeiger
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 57 mm
Error limit: 0,015 mm
Shank diameter: 8 mm
Min./max. measurement force: 0.4-5 N
Calibration Group: C
Scale value: 0,01 mm

Manufacturer part no.: 2046A-80
