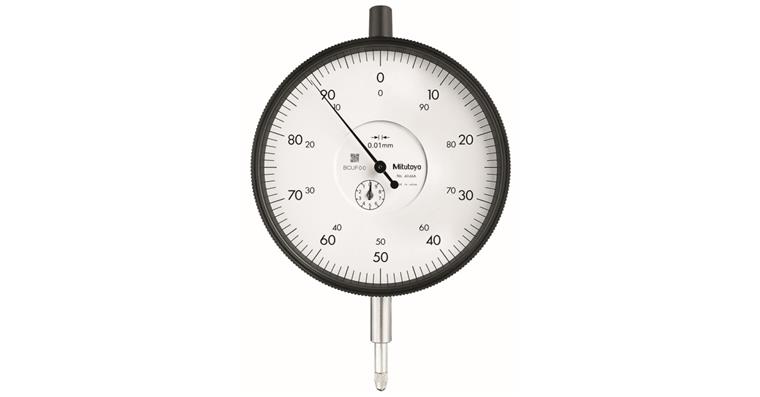

Messuhr metrisch 10 mm, 0,01mm, mit flacher Rückwand Ø92 mm

Messuhr metrisch 10 mm, 0,01mm, mit flacher Rückwand Ø92 mm

Messuhr metrisch 10 mm, 0,01mm, mit flacher Rückwand Ø92 mm
Item no: 1001360 343

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Standard dial gauge with outer ring, dia. 92 mm
  • Gauge slide: carbide-tipped, thread: M 2.5 x 0.45 mm


Brand: MITUTOYO
Length measuring range: 10 mm
Type: flache Rückwand
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 92 mm
Error limit: 0,015 mm
Shank diameter: 8 mm
Min./max. measurement force: 0.4-1.4 N
Shaft length: 18,9 mm
Calibration Group: C
Scale value: 0,01 mm

Manufacturer part no.: 4046AB

Product Datasheet
