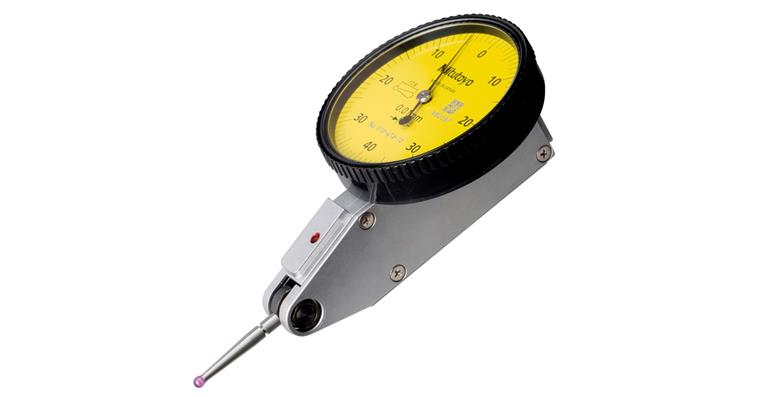

Fühlhebelmessgerät Messbereich 0,8 mm Tasterlänge 20,9 mm Basissatz, Rubinkugel

Fühlhebelmessgerät Messbereich 0,8 mm Tasterlänge 20,9 mm Basissatz, Rubinkugel

Fühlhebelmessgerät Messbereich 0,8 mm Tasterlänge 20,9 mm Basissatz, Rubinkugel
Item no: 1001361 231

Online price:

Available in 11-13 working days.

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts, boreholes and aligning workpieces.

Execution
  • Glare-free, flat dial face for easy reading of measurement results
  • The improved placement of the O-ring seal enables easy rotation of the dial face whilst protecting the scale from the ingress of dust and oil
  • Multi-layer coating on dial face
  • Accuracy according to factory standard

Delivery
includes clamping shank with dia. 8 mm and box


Brand: MITUTOYO
Length measuring range: 0,8 mm
Type: Maßstab 0-40-0
Scale value: 0,01 mm
Diameter: 40 mm
Length of measuring sensor from centre of ball: 20,9 mm
Min./max. measurement force: 0.01-0.3 N
Error limit: 0,008 mm
Connection thread: M1.7
Material of measuring ball: Rubin
Ball diameter: 2 mm
Calibration Group: L

Manufacturer part no.: 513-474-10E

Product Datasheet
