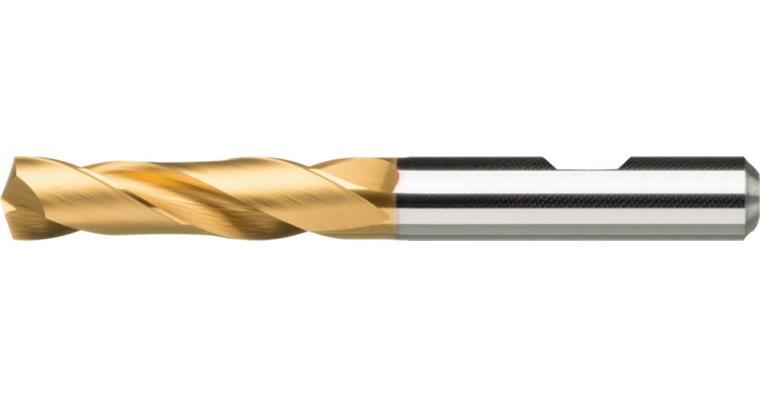

ATORN high-perf. drill, SC TiAlN+TiN, HPC 3xD 7.5 mm x 8 mm x 79 mm HB external

ATORN high-perf. drill, SC TiAlN+TiN, HPC 3xD 7.5 mm x 8 mm x 79 mm HB external

ATORN high-perf. drill, SC TiAlN+TiN, HPC 3xD 7.5 mm x 8 mm x 79 mm HB external
Item no: 1002110 169

Online price:

Will be ordered for you

Application
For HPC boring up to a hardness of 63 HRC.

Execution
  • High-performance drill, solid carbide TiAlN+TiN
  • 2 drill heels
  • Four grinding faces
  • 30° spiral angle
  • Straight main cutting edge

Advantage
  • Innovative cutting geometry with straight cutting edge for use in steel and cast iron with high cutting rates and very high service life
  • Multilayer TIAlN coating with one TIN surface layer ensures outstanding service life and user-friendly wear detection
  • Cutting edge preparation minimises micro-fractures on the cutter


Brand: ATORN
Cutting edge diameter: 7,5 mm
Tolerance of cutting edge diameter: m7
Cutting material: SC
Surface: TiAlN/TiN
Max. drilling depth (D): 3xD
Type: HPC UNI
Coolant supply: External
Tool holding device: HB parallel shank
Angle of the tip: 140 Degree
Shank diameter: 8 mm
Chip flute length: 41 mm
Length: 79 mm
f steel 1000: 0,17 mm/r
DIN: 6537

ATORN-No.: 10910021

EAN no.: 4050293085341

Datasheet cutting values
