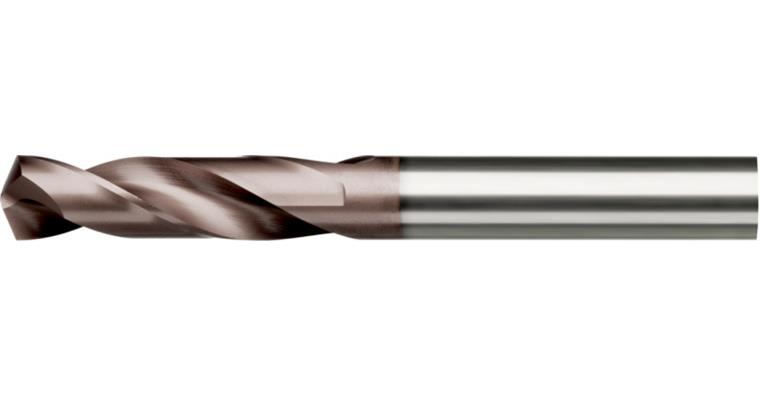

ATORN twist drill TLP HSSE-TiAlN, DIN 1897, 5.1 mm x 62 mm x 26 mm, 130°

ATORN twist drill TLP HSSE-TiAlN, DIN 1897, 5.1 mm x 62 mm x 26 mm, 130°

ATORN twist drill TLP HSSE-TiAlN, DIN 1897, 5.1 mm x 62 mm x 26 mm, 130°
Item no: 1003100 300

Online price:

Available in 4-6 working days.
Replacement article

Application
Geometry with deep-hole profile for application up to a strength of 1300 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile for optimised chip removal at greater drilling depths without venting
  • effective removal of chips thanks to large chipping spaces
  • TiAlN coating for increased service life demands

Delivery
Packing unit: drill Ø 1.0-6.0 mm = 10 units (price per unit)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Surface: TiAlN
Type: TLP
Tool holding device: HA parallel shank
Cutting edge diameter: 5,1 mm
Angle of the tip: 130 Degree
Chip flute length: 26 mm
Length: 62 mm
f steel 700: 0,09 mm/r
DIN: 1897

ATORN-No.: 10480436

EAN no.: 4050293326192

Product Datasheet Datasheet cutting values
