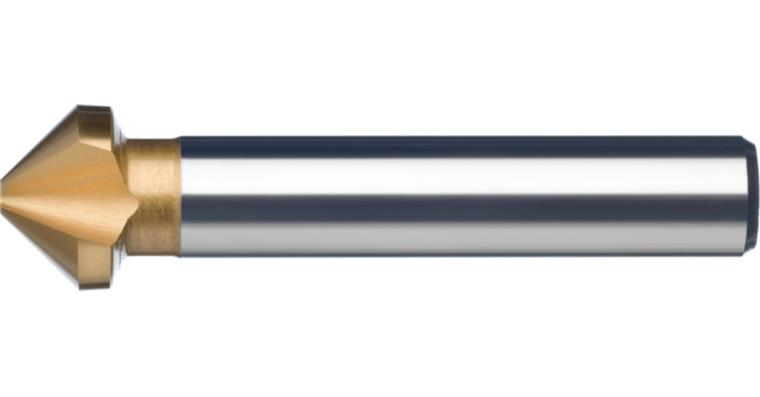

ATORN countersink, 90°, HSS-TiN, T=3, 6.3 x 45 mm, DIN 335 shape C

ATORN countersink, 90°, HSS-TiN, T=3, 6.3 x 45 mm, DIN 335 shape C

ATORN countersink, 90°, HSS-TiN, T=3, 6.3 x 45 mm, DIN 335 shape C
Item no: 1003120 131

Online price:

Available for immediate delivery

Application
For producing 90° counterbores up to 1000 N/mm².

Execution
profile-ground triple-edge countersink with radial relief

Advantage
radial relief ensures optimum chip breaking


Brand: ATORN
Material to be processed: Universal use
Countersink angle: 90 Degree
Cutting material: HSS
Surface: TiN
Number of cutting edges: 3 PCS
Tool holding device: HA parallel shank
Spot-facer diameter: 6,3 mm
Tip diameter: 1,5 mm
Shank diameter: 5 mm
Length: 45 mm
f steel 700: 0,08 mm/r
DIN: 335

ATORN-No.: 10640105

EAN no.: 4050293066876

Product Datasheet Datasheet cutting values
