ATORN hand tap set HSS A/D/C 352 0° M2.3 0.4 mm ISO2 D/S 3xD

ATORN hand tap set HSS A/D/C 352 0° M2.3 0.4 mm ISO2 D/S 3xD

ATORN hand tap set HSS A/D/C 352 0° M2.3 0.4 mm ISO2 D/S 3xD
Item no: 1003140 007

Online price:

Available in 4-6 working days.

Application
For manually tapping metric threads in through holes and blind holes in the steel, NF metal and (cast) material groups up to a strength of 1000 N/mm² in single part production.

Execution
Set consisting of taper tap (form A), second tap (form D) and third tap (form C)

Advantage
Long service life and high level of process reliability thanks to innovative cutting geometry and universal application for maximum flexibility in use


Brand: ATORN
Material to be processed: Universal use
Type: UNI MAX 1000 N/mm2
Design: Set
Thread type: Metric thread
Thread type x nominal diameter: M2.3
Core hole diameter: 1,9 mm
Pitch: 0,4 mm
Cutting material: HSS
Surface: Uncoated
Shank square: 2,1 mm
Hole type: Clearance/blind hole ≤ 3xD
Length: 36 mm
Tolerance of screw taps: ISO 2 (6H)
Shank diameter: 2,8 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 1
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 3
Overall stainless steel suitability (Eignung Edelstahl ): 3
fitness not iron total (Eignung NE-Metalle): 1
Cutting speed (cast) suitability (Eignung Guss): 2
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 3
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 352

ATORN-No.: 10470445

EAN no.: 4050293014754

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN hand tap set HSS A/D/C 352 0° M1.4 0.3 mm ISO2 D/S 3xD
  •
    ATORN SC mini end mill, long, diameter 0.6 x 0.9 x 10 x 50 mm T=2 RT52
  •
    ATORN hand tap set HSS A/D/C 352 0° M3.5 0.6 mm ISO2 D/S 3xD
  •
    Ergonomic plugin system Skywalker HD™ 910x910x13 mm 100 % natural rubber
  •
    Boring bar mount shank dia. 20 mm bore dia. 10 mm shape E2 DIN 69880
  •
    ATORN test pin RSB TC1 4.86 mm x 70 mm
  •
    ATORN machine tap HSSE vaporised 45° shape C MF12x1.06H
  •
    Softshell-Weste BODYFORCE schwarz/anthrazit Gr. 4XL
  •
    Jacket PROTECTIQ arc2 anthracite/black size 64
  •
    Data cable ATORN DataVariable/Box-DIGIMATIC, length 2 m, type O
  •
    ATORN tw. dr. bit N HSS, steam-treat., DIN 338, 20.0 mm x 214 mm x 140 mm, 118°
  •

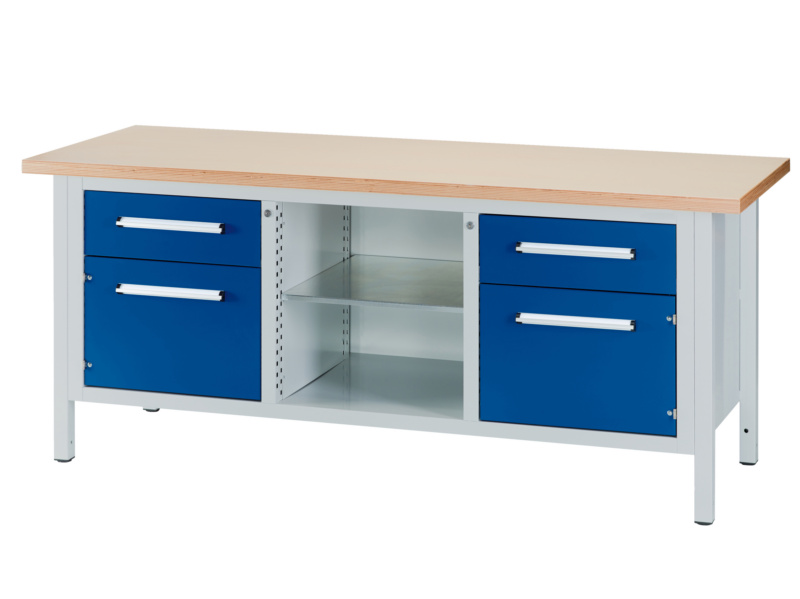

    Cabinet workbench W2000XD750XH840mm 3 drawers 2 doors RAL7035/5010
