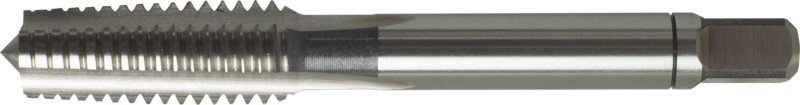

ATORN hand tap FS HSS C 352 0° M6 1 mm ISO2 D/S 3xD

ATORN hand tap FS HSS C 352 0° M6 1 mm ISO2 D/S 3xD

ATORN hand tap FS HSS C 352 0° M6 1 mm ISO2 D/S 3xD
Item no: 1003140 045

Online price:

Available in 4-6 working days.

Application
For producing metric threads by hand in through holes and blind holes, in steel, non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm² in single-part production.

Execution
Third tap (plug) with notch shape C without ring

Advantage
Long service life and process reliability through innovative cutting geometry and universal use for maximum application flexibility


Brand: ATORN
Material to be processed: Universal use
Design: Third tap
Type: UNI MAX 1000 N/mm2
Thread type: Metric thread
Thread type x nominal diameter: M6
Lead angle shape: C
Pitch: 1 mm
Cutting material: HSS
Shank diameter: 6 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank square: 4,9 mm
Surface: Uncoated
Tolerance of screw taps: ISO 2 (6H)
Core hole diameter: 5 mm
Length: 50 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 1
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 3
Overall stainless steel suitability (Eignung Edelstahl ): 3
fitness not iron total (Eignung NE-Metalle): 1
Cutting speed (cast) suitability (Eignung Guss): 2
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 3
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 352

ATORN-No.: 10470490

EAN no.: 4050293015201

Product Datasheet
