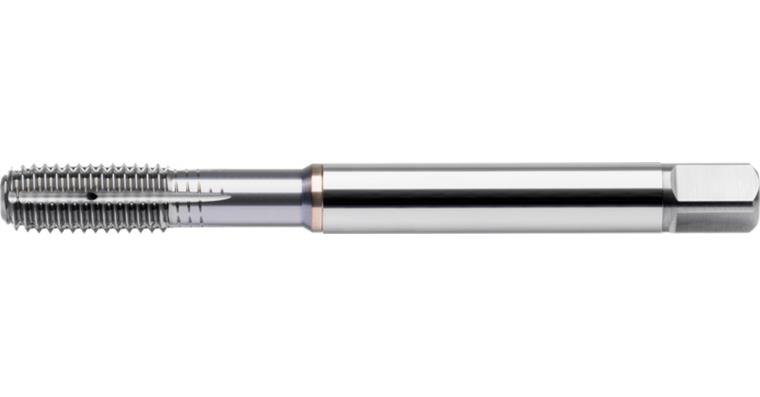

ATORN thread former HSSE-PM TiCN DIN 371 M10x1.5 mm ISO 2 3xD, internal radial

ATORN thread former HSSE-PM TiCN DIN 371 M10x1.5 mm ISO 2 3xD, internal radial

ATORN thread former HSSE-PM TiCN DIN 371 M10x1.5 mm ISO 2 3xD, internal radial
Item no: 1003141 451

Online price:

Still in stock: 7

Application
For producing metric threads in blind holes on CNC or conventional machines in steel, stainless steel and non-ferrous metals up to a strength of 1300 N/mm².

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability
  • High-quality, torsion-resistant HSSE PM cutting material and surface finish for very high service life requirements


Brand: ATORN
Material to be processed: Universal use
Surface: TiCN
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M10
Pitch: 1,5 mm
Cutting material: HSSE-PM
Core hole diameter: 9,3 mm
Length: 100 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 10 mm
Shank square: 8 mm
Coolant supply: Internal radial
Tolerance of screw taps: ISO 2 (6H)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 371 similar

ATORN-No.: 10483202

EAN no.: 4050293582826

Product Datasheet Datasheet cutting values
