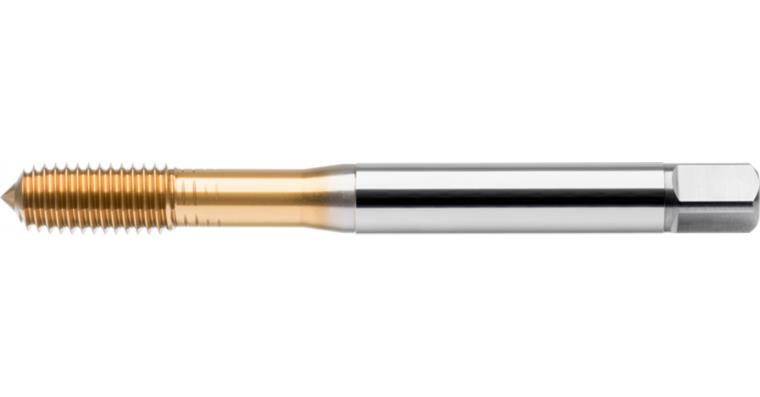

ATORN thread mould HSSE TIN DIN 371 M10 x 1.5 mm ISO 3 1xD

ATORN thread mould HSSE TIN DIN 371 M10 x 1.5 mm ISO 3 1xD

ATORN thread mould HSSE TIN DIN 371 M10 x 1.5 mm ISO 3 1xD
Item no: 1003141 525

Online price:

Available for immediate delivery

Application
For producing metric threads in through holes and blind holes on CNC and conventional machines in the steel, stainless steel and NF metal material groups up to a strength of 1300 N/mm² with > 10% material expansion.

Execution
Without lubrication grooves, structural dimensions according to: DIN 371 = reinforced shank (up to M10), DIN 376 = protruding shank (from M12)

Advantage
Innovative mould geometry ensures very high dimensional accuracy and process reliability


Brand: ATORN
Material to be processed: Universal use
Surface: TiN
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M10
Pitch: 1,5 mm
Cutting material: HSSE
Core hole diameter: 9,3 mm
Length: 100 mm
Hole type: Clearance/blind hole ≤ 1xD
Shank diameter: 10 mm
Shank square: 8 mm
Coolant supply: External
Tolerance of screw taps: ISO 3 (6G)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 371 similar

ATORN-No.: 10483188

EAN no.: 4050293582680

Product Datasheet Datasheet cutting values
