ATORN machine thread former IC HSSE-PM TiAlN DIN 374 MF12 x 1.5 mm ISO 2 3xD

ATORN machine thread former IC HSSE-PM TiAlN DIN 374 MF12 x 1.5 mm ISO 2 3xD

ATORN machine thread former IC HSSE-PM TiAlN DIN 374 MF12 x 1.5 mm ISO 2 3xD
Item no: 1003141 593

Online price:

Available in 4-6 working days.

Application
For producing fine, deep-set metric threads in through holes and blind holes on CNC or conventional machines in steel, stainless steel and non-ferrous metals up to a strength of 1300 N/mm².

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability.
  • High-quality, torsion-resistant HSSE PM cutting material and surface finish for very high service life requirements.
  • Cutting edge finish for very high service life requirements.


Brand: ATORN
Material to be processed: Universal use
Surface: TiCN
Lead angle shape: C
Thread type: Metric fine thread
Thread type x nominal diameter: MF12
Pitch: 1,5 mm
Cutting material: HSSE-PM
Core hole diameter: 11,3 mm
Length: 100 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 9 mm
Shank square: 7 mm
Coolant supply: Internal radial
Tolerance of screw taps: ISO 2X (6HX)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 374 similar

ATORN-No.: 10482550

EAN no.: 4050293579888

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine thread former long HSSE-PM TiN DIN 374 MF10 x 1.0 mm ISO 2 3xD
  •
    ATORN machine thread former long HSSE-PM TiN DIN 374 MF14 x 1.5 mm ISO 2 3xD
  •
    ATORN SC TiAlNplus high-feed drill, 3xD diameter 11.0 mm, HA shaft, with IC
  •
    ATORN SC TiAlNplus high-feed drill, 5xD diameter 17.0 mm, HA shaft, with IC
  •
    1/2 inch internal TX® screwdriver set CV steel 9 pieces T 20-60 length 55 mm
  •
    1/2 inch torque wrench click lens type setting range 60-320 Nm
    348,30 €
  • Collection box for used blades HxWxD 210x100x100 mm
  •
    Wrench holder horizontal for perforated plates with hole 10x10 mm for 8 wrenches
  •
    Ferroband magnetised wall strip 100 cm
  •

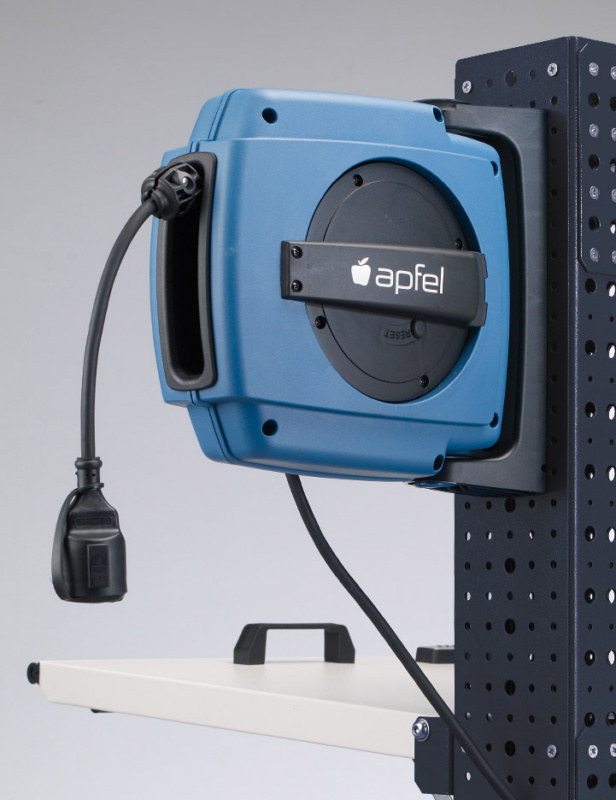

    Kabelaufroller automatisch 12 m
  •

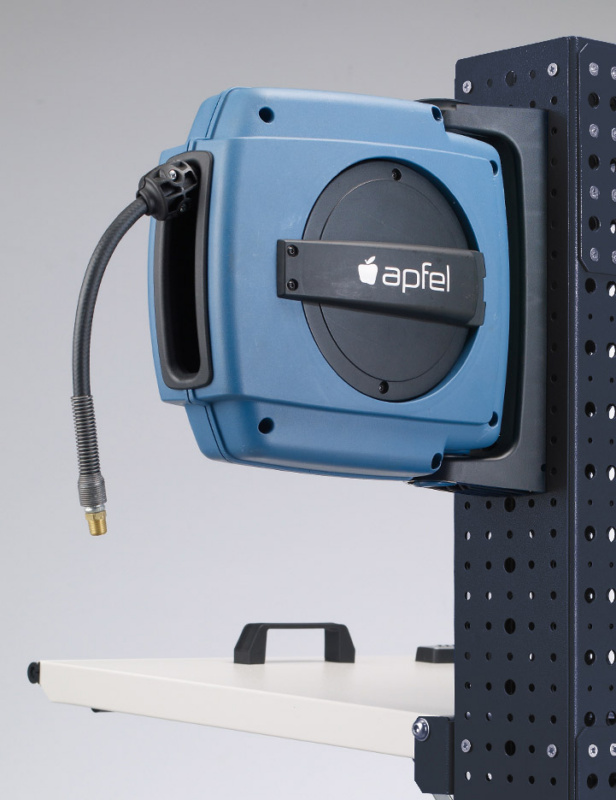

    Schlauchaufroller automatisch 8 m, 5/16"
  •

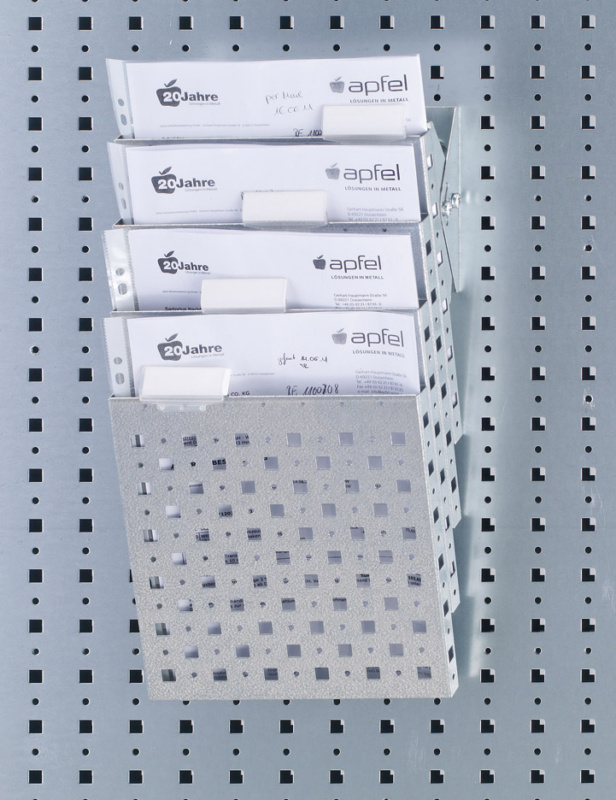

    Dokumentenfach-Set, Hochformat 4-fach
