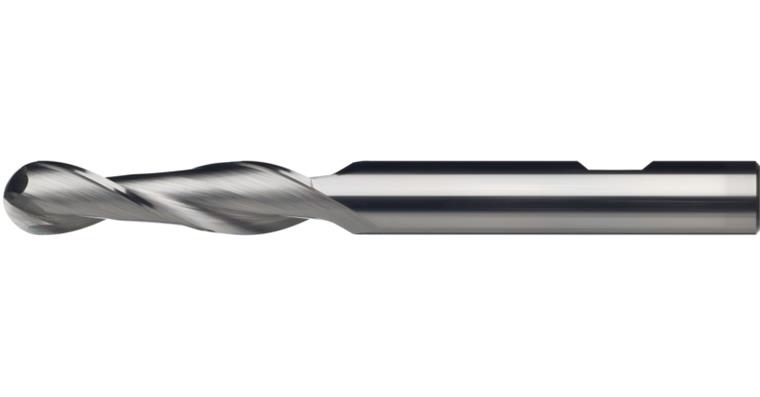

ATORN SC radius cutter, long, 2 cutters, 16.0 mm MF shank DIN 6535 HB

ATORN SC radius cutter, long, 2 cutters, 16.0 mm MF shank DIN 6535 HB

ATORN SC radius cutter, long, 2 cutters, 16.0 mm MF shank DIN 6535 HB
Item no: 1003160 143

Online price:

Available in 5-7 working days.

Application
Radius milling cutter for universal use for copy milling in dip working and mould construction.

Execution
  • Solid carbide ultra-fine grain
  • Up to 5 mm diameter straight shank in accordance with DIN 6535 HA
  • From 6 mm diameter straight shank in accordance with DIN 6535 HB
  • Centre cutting
  • Uncoated


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: N
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HB parallel shank
Construction length: Long
Cutting edge diameter: 16 mm
Cutting edge length: 65 mm
Length: 150 mm
Shank diameter: 16 mm
fz steel 1000: 0,1 mm

ATORN-No.: 10910494

EAN no.: 4050293089059

Product Datasheet Datasheet cutting values
