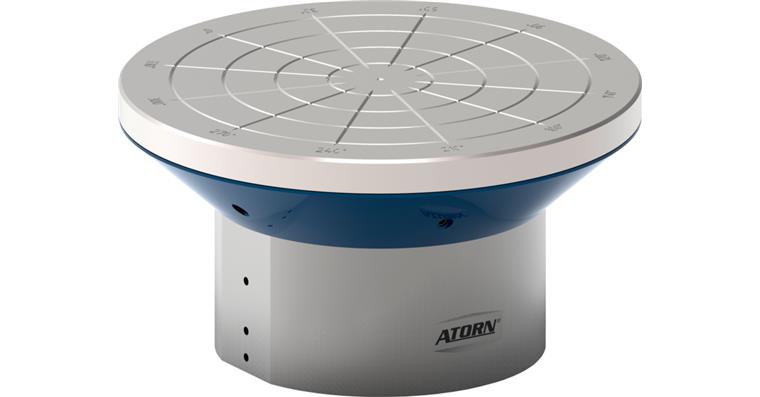

Application
For checking concentricity and axial runout on components with rotational symmetry. Ideal for larger components for which clamping and testing on traditional concentricity test devices between points is impossible or can only be achieved with a great deal of effort.

Execution

• precision design with high axial and radial runout precision of 0.002mm at R100
• Precision bearing protected by contactless labyrinth seals
• three versions 200 mm, 300 mm and 400 mm, larger dimensions upon request
• round table with milled numerical angle scale 30°
• DNC-coated housing (chrome-nickel coating)
• incl. test log

Advantage

• two test surfaces for accuracy check
• high axial and radial runout precision of 2 μ at R100
• angle sections on the rotary table for simple and rapid alignment
• rapid worker control, e.g. relieves workload 3-D coordinate measuring instruments
• DNC coating prevents rust formation

Notes
two measuring bars can be installed (opposite one another) on the round test table.
