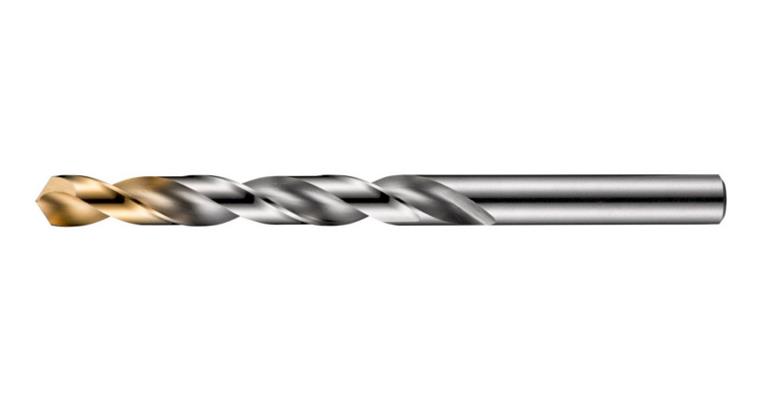

Twist drill bit DIN338 HSS TIN head A002 dia. 2.2 mm

Twist drill bit DIN338 HSS TIN head A002 dia. 2.2 mm

Twist drill bit DIN338 HSS TIN head A002 dia. 2.2 mm
Item no: 1010012 113

Online price:

Available for immediate delivery

Application
For universal use up to 1,400 N/mm².

Execution
Twist drill bit with universal standard geometry

Advantage
  • Suitable for drilling various materials
  • The TiN coating on the head improves performance and extends the service life
  • For manual and tool application


Brand: DORMER PRAMET
Material to be processed: Universal use
Cutting edge diameter: 2,2 mm
Length: 53 mm
Chip flute length: 27 mm
DIN: 338
Tool holding device: HA parallel shank
Angle of the tip: 118 Degree
Cutting material: HSS
Surface: Uncoated
Surface of the head: TiN
Type: A002
Coolant supply: External
Cutting direction: Right-hand cutting
Max. drilling depth (D): 4xD
Number of cutting edges: 2 PCS
Shank diameter: 2,2 mm
Tolerance of cutting edge diameter: h8
Tolerance of shank diameter: h6
f steel 700: 0,135 mm/r

Manufacturer part no.: 5967419

EAN no.: 7320760376898

Product Datasheet Datasheet cutting values
