Twist drill bit DIN338 HSS TIN head A002 dia. 13.6 mm

Twist drill bit DIN338 HSS TIN head A002 dia. 13.6 mm

Twist drill bit DIN338 HSS TIN head A002 dia. 13.6 mm
Item no: 1010012 229

Online price:

Available for immediate delivery

Application
For universal use up to 1,400 N/mm².

Execution
Twist drill bit with universal standard geometry

Advantage
  • Suitable for drilling various materials
  • The TiN coating on the head improves performance and extends the service life
  • For manual and tool application


Brand: DORMER PRAMET
Material to be processed: Universal use
Cutting edge diameter: 13,6 mm
Length: 160 mm
Chip flute length: 108 mm
Max. drilling depth (D): 4xD
Angle of the tip: 118 Degree
Cutting material: HSS
Surface: Uncoated
Surface of the head: TiN
Tool holding device: HA parallel shank
Type: A002
DIN: 338
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Shank diameter: 13,6 mm
Tolerance of cutting edge diameter: h8
Tolerance of shank diameter: h6
f steel 700: 0,349 mm/r

Manufacturer part no.: 5967358

EAN no.: 7320760385203

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Perforated wall width x depth x height 1000x12x302 mm
    74,21 €
  • Twist drill bit DIN338 HSS TIN head A002 dia. 13.4 mm
  •
    ATORN SC high-feed milling cutter 5x3.5x18x57 mm r=0.5 T=4 HA RockTec PRO
  •
    3-point internal micrometer 10-12 mm with TiN-coated measuring faces
  •
    ATORN SC high-feed milling cutter 6x3.5x20x57 mm r=0.6 T=4 HA RockTec PRO
  •
    ATORN screw tap HSSE B 374 0° MF35 1.5 mm ISO2 D 3xD CNC M
  •
    SC end mill for graphite extra-long diamond coating, 6 x 150 mm, 2 cutting edges
  •
    ATORN SC high-feed milling cutter 8x4.8x24x63 mm r=1.2 T=4 HA RockTec PRO
  •
    ATORN SC high-feed milling cutter 4x2.5x16x57 mm r=0.4 T=4 HA RockTec PRO
  •
    Comb. turning + threading tool gauge f. trapezoidal, Whitworth + metric threads
  •
    Paint powder for chalk line reel, red bottle with 100 grams
  •

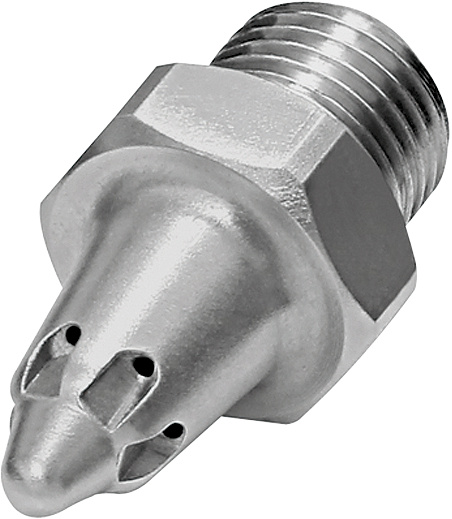

    Low noise round nozzle 22.206 nozzle outer dia. 11 mm M12x1.25 46 mm
