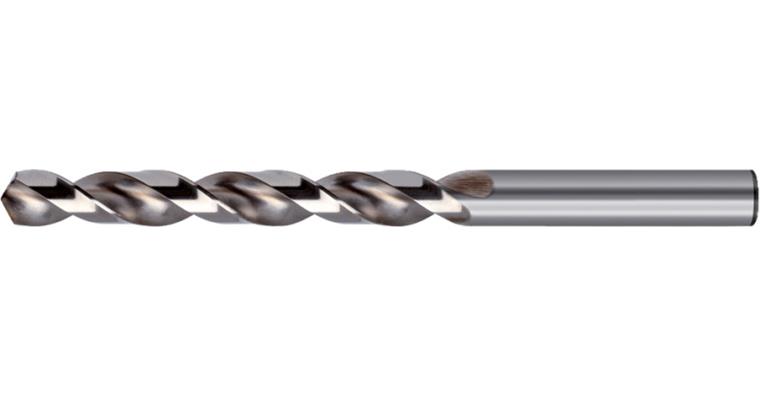

Short twist drill bit DIN 338 type W HSS ground 10 mm

Short twist drill bit DIN 338 type W HSS ground 10 mm

Short twist drill bit DIN 338 type W HSS ground 10 mm
Item no: 1010211 178

Online price:

Still in stock: 6

Application
Special drill bit with wide, ground and polished chip flutes for soft, long-chipping materials.

Execution
  • Aluminium drill bit
  • Straight shank
  • Right-cutting
  • Cone polished section
  • Side chip angle 35°–40°
  • HSS, ground


Brand: HARTNER
Material to be processed: Aluminium
Cutting edge diameter: 10 mm
Length: 133 mm
Chip flute length: 87 mm
Max. drilling depth (D): 5xD
Angle of the tip: 130 Degree
Cutting material: HSS
Surface: Uncoated
Tool holding device: Cylinder shank
Type: W
DIN: 338
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
f aluminium: 0,17 mm/r
Min. f in non-ferrous metals: 0,17 mm/r
Max. f in non-ferrous metals: 0,22 mm/r

Manufacturer part no.: 81030 10

EAN no.: 4031096060186

Product Datasheet Datasheet cutting values
