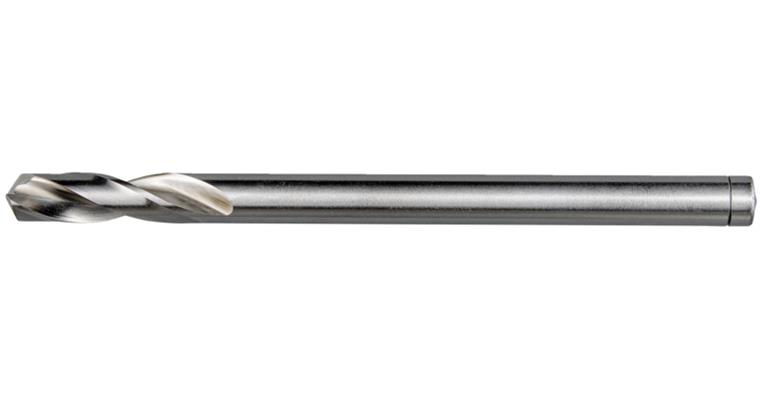

TWIST DRILL BIT HSS-E CO5 D 7.0MM

TWIST DRILL BIT HSS-E CO5 D 7.0MM

TWIST DRILL BIT HSS-E CO5 D 7.0MM
Item no: 1010263 175

Online price:

Available for immediate delivery

Application
For Hardox and INOX sheet metals as well as tough and hard materials such as rust- and acid-resistant chrome-nickel steels and components subject to wear. Also for hand-guided tools.

Execution
Short cutting edge with split point

Notes
Very good centring and drilling properties. Problem solver for Hardox processing.

Brand: LIZZARD
Material to be processed: Stainless steel | Titanium | Hardox
Cutting edge diameter: 7,5 mm
Length: 109 mm
Chip flute length: 34 mm
Max. drilling depth (D): 5xD
Angle of the tip: 135 Degree
Cutting material: HSSE Co5
Surface: Uncoated
Tool holding device: Cylinder shank
Type: Hardox/Inox
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Min. f in non-ferrous metals: 0,17 mm/r
Max. f in non-ferrous metals: 0,17 mm/r
Min. f in steel: 0,08 mm/r
Max. f in steel: 0,19 mm/r
Min. f in stainless steel: 0,08 mm/r
Max. f in stainless steel: 0,08 mm/r
Min. f in cast iron: 0,15 mm/r
Max. f in cast iron: 0,15 mm/r
