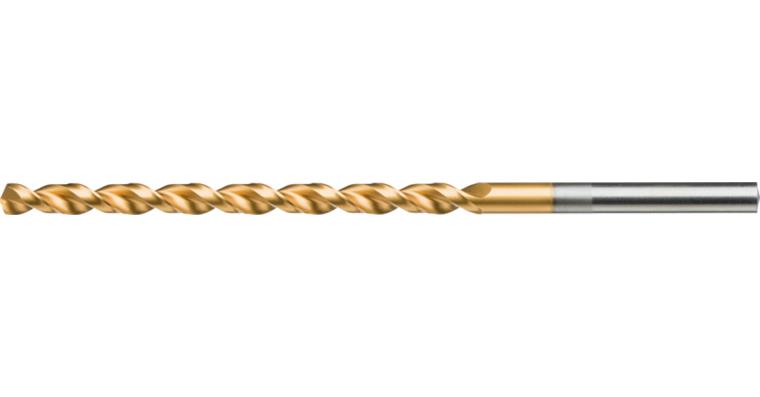

ATORN twist drill TLP HSS-TiN, DIN 340, 3.3 mm x 106 mm x 69 mm, 130°

ATORN twist drill TLP HSS-TiN, DIN 340, 3.3 mm x 106 mm x 69 mm, 130°

ATORN twist drill TLP HSS-TiN, DIN 340, 3.3 mm x 106 mm x 69 mm, 130°
Item no: 1010410 133

Online price:

Available for immediate delivery

Application
Geometry with deep-hole profile for application up to a strength of 1000 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile to optimise chip removal at greater drilling depths without venting
  • effective removal of chips thanks to large chipping spaces

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)


Brand: ATORN
Material to be processed: Steel | Cast metal | Aluminium
Cutting material: HSS
Surface: TiN
Type: TLP
Self-centring: Yes
Tool holding device: HA parallel shank
Cutting edge diameter: 3,3 mm
Angle of the tip: 130 Degree
Chip flute length: 69 mm
Length: 106 mm
f steel 700: 0,05 mm/r
DIN: 340

ATORN-No.: 10472026

EAN no.: 4050293029819

Product Datasheet Datasheet cutting values
