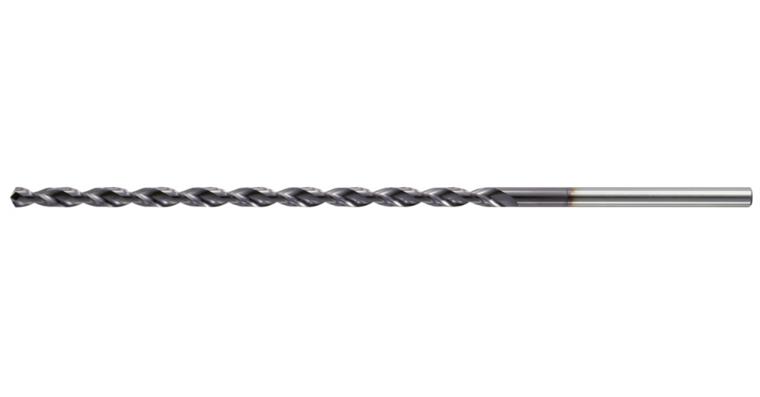

Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 3.4x115x165 mm

Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 3.4x115x165 mm

Twist drill bit HSS-E-Co8 AG coat. DIN 1869-1 tip 118° 15xD dia. 3.4x115x165 mm
Video
Item no: 1010425 034

Online price:

Available in 6-8 working days.

Application
For drilling deep holes under difficult conditions. For steel up to 1200 N/mm² and cast iron. Drilling in increments, without chip removal up to 15xD!

Execution
  • Straight shank
  • Right-cutting
  • Special flute geometry
  • Helix angle 34°
  • DIN 1869-1
  • HSSE Co8, ground AG(AlCr) coating

Notes
Note the respective length/diameter ratio of the bore diameter and the flute length. Use only high-precision tool chucks!

Brand: NACHI
Material to be processed: Steel | Cast metal
Cutting edge diameter: 3,4 mm
Length: 165 mm
Chip flute length: 115 mm
Max. drilling depth (D): 15xD
Angle of the tip: 118 Degree
Cutting material: HSSE Co8
Surface: AlCrN
Tool holding device: Cylinder shank
Type: AGPLSD
DIN: 1869
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
f steel 1000: 0,100 mm/r

Manufacturer part no.: L6540P 3.4X165

Product Datasheet Datasheet cutting values
