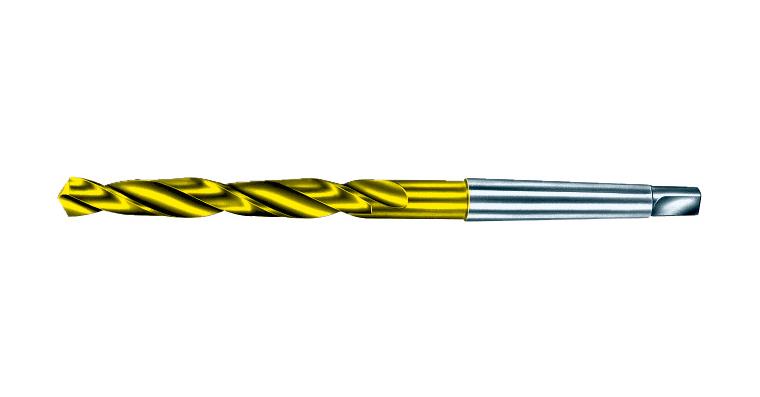

Twist drill bit DIN 345 type N HSS+TiN ground 17.5 mm

Twist drill bit DIN 345 type N HSS+TiN ground 17.5 mm

Twist drill bit DIN 345 type N HSS+TiN ground 17.5 mm
Item no: 1010511 241

Online price:

Available in 6-8 working days.

Application
For materials that can be machined normally such as steel and cast steel, alloyed and unalloyed, up to approx. 900 N/mm², grey cast iron, malleable iron, spheroidal graphite iron, sintered iron, nickel silver, graphite. For short-chipping materials such as aluminium alloys, high-pressure die casting, bronze, brass etc.

Execution
  • With Morse taper shank and flat tangs
  • Right-cutting
  • Tip angle 118°
  • Cone polished section
  • Point thinning in accordance with DIN 1412 shape A
  • HSS/TiN coated for even longer service life in steel up to 900 N/mm2, cast iron, aluminium alloys, bronze, brass


Brand: HARTNER
Material to be processed: Steel | Cast metal
Cutting edge diameter: 17,5 mm
Chip flute length: 130 mm
Length: 228 mm
Morse taper size: MK 2
Cutting material: HSS
Type: N
Surface: TiN
Tool holding device: Morse taper shank
Angle of the tip: 118 Degree
f steel 700: 0,3 mm/r
Coolant supply: External
Cutting direction: Right-hand cutting
DIN: 345
Number of cutting edges: 2 PCS
Max. f in cast iron: 0,28 mm/r
Max. f in non-ferrous metals: 0,33 mm/r
Min. f in cast iron: 0,28 mm/r
Min. f in non-ferrous metals: 0,26 mm/r
Shank style: Morse taper

Manufacturer part no.: 84460 17,5

EAN no.: 4031096047835

Product Datasheet Datasheet cutting values
