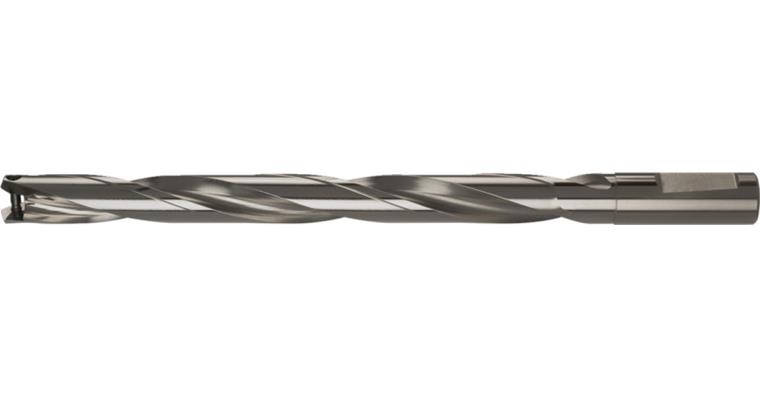

Multiplex HPC holder 10xD size 160 for drilling range dia. 16.00–16.49 mm

Multiplex HPC holder 10xD size 160 for drilling range dia. 16.00–16.49 mm

Multiplex HPC holder 10xD size 160 for drilling range dia. 16.00–16.49 mm
Item no: 1010644 110

Online price:

Available in 6-8 working days.

Execution
  • Long service life due to wear-resistant indexable inserts
  • Optimised chip removal
  • Highly accurate and stable insert seat
  • Perfect lubrication
  • Large selection of indexable inserts

Advantage
Drilling tool also suitable for stack drilling

Delivery
Reversible tip holder and indexable insert including clamping screw

Notes
For drilling depths from 5xD we recommend centring or making a pilot hole. When drilling without centring – reduce feed by approx. 50%. In the case of through-bores, the feed is to be reduced in the event of breakthrough.

Brand: HARTNER
Cutting material: HSCo-PM
Max. drilling depth (D): 10xD
Surface: Coated
Angle of the tip: 130 Degree
Shank diameter (d2 h6): 16 mm
Length (l1): 243 mm
Chip flute length (l2): 168 mm
Number of cutting edges: 2
Tolerance of shank diameter: h6
Shaft length (l3): 48 mm
Shank style: Cylindrical DIN 6535-HB
Size: 160

Manufacturer part no.: 86686 16,000

EAN no.: 4031096234440

Product Datasheet
