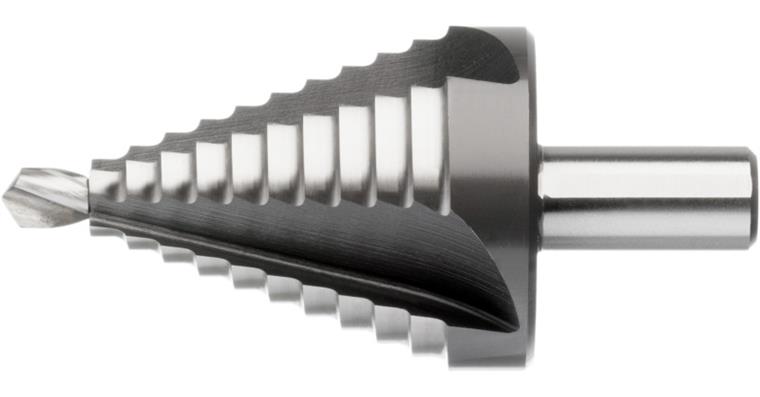

ATORN stepped drill bit HSS str. groove w/interch. bit 25.0 mm-58.0 mm type A2

ATORN stepped drill bit HSS str. groove w/interch. bit 25.0 mm-58.0 mm type A2

ATORN stepped drill bit HSS str. groove w/interch. bit 25.0 mm-58.0 mm type A2
Item no: 1010931 105

Online price:

Still in stock: 3

Application
For drilling and simultaneous deburring of holes up to a diameter of 58 mm and a material thickness of up to 4 mm in steel, non-ferrous metals and cast iron. Tool diameters are geared towards meeting the demands of general tool construction.

Execution
Stepped drill bit, profile-ground, with straight cutting edge

Advantage
  • High variability: A wide range of bores can be covered with just one tool
  • 3-facet shank ensures good torque transfer in the chuck
  • User-friendly tool changing: Bit easily replaced in case of wear


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSS
Surface: Uncoated
Shank diameter: 12 mm
Tool holding device: Parallel shank with three tightening surfaces
Type: A2
Step diameter: 49 mm | 52 mm | 55 mm | 58 mm | 25 mm | 28 mm | 31 mm | 34 mm | 37 mm | 40 mm | 43 mm | 46 mm
Step length: 4 mm
Length: 85 mm

ATORN-No.: 10643013

EAN no.: 4050293069075

Product Datasheet
