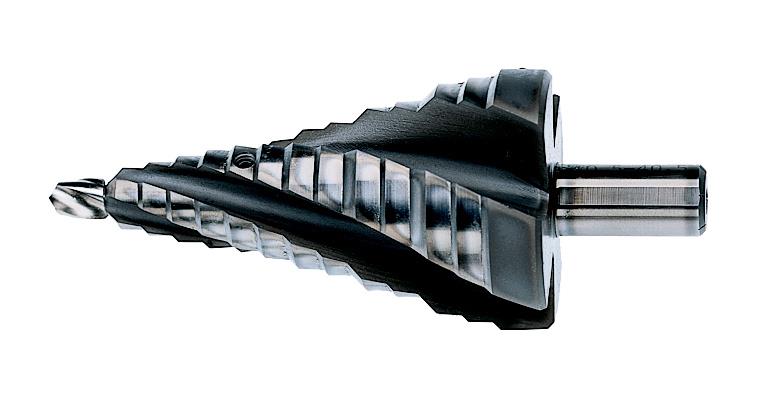

ATORN stepped drill bit HSS, spiral groove, 10.5 mm-40.5 mm, type E 3 S

ATORN stepped drill bit HSS, spiral groove, 10.5 mm-40.5 mm, type E 3 S

ATORN stepped drill bit HSS, spiral groove, 10.5 mm-40.5 mm, type E 3 S
Item no: 1010932 101

Online price:

Available for immediate delivery

Application
For drilling through holes and core holes for metric fine thread up to a material thickness of 4 mm in steel, stainless steel, non-ferrous metals and cast iron.

Execution
Stepped drill bit HSS, uncoated and profile-ground with spiral cutting edge for highest requirements in terms of dimensional accuracy and process reliability

Advantage
  • High variability: A wide range of bores can be covered with just one tool
  • 3-facet shank ensures good torque transfer in the chuck
  • User-friendly tool changing: Bit easily replaced in case of wear


Brand: ATORN
Material to be processed: Steel | Non-ferrous metal | Cast metal
Cutting material: HSS
Surface: Plasma-nitrated
Shank diameter: 12 mm
Tool holding device: Parallel shank with three tightening surfaces
Type: E 3 S
Step diameter: 10.5/12.5 mm (M12 x 1.5) | 14.5/16.5 mm (M16 x 1.5) | 18.5/20.5 mm (M20 x 1.5) | 23.5/25.5 mm (M25 x 1.5) | 30.5/32.5 mm (M32 x 1.5) | 38.5/40.5 mm (M40 x 1.5)
Step length: 4 mm
Length: 110 mm

ATORN-No.: 10643020

EAN no.: 4050293069143

Product Datasheet
