ATORN high-perf. pilot drill, SC TiAlN, 5xD 9.02 mm x 10 mm x 103 mm HA internal

ATORN high-perf. pilot drill, SC TiAlN, 5xD 9.02 mm x 10 mm x 103 mm HA internal

ATORN high-perf. pilot drill, SC TiAlN, 5xD 9.02 mm x 10 mm x 103 mm HA internal
Item no: 1011091 131

Online price:

Available in 5-7 working days.

Application
For placing a pilot hole for deep-hole drills from 12xD with HPC geometry up to a strength of 1300 N/mm².

Execution
  • Solid carbide TiAlN high-performance drill
  • 2 drill heels
  • Cone polished section
  • 30° spiral angle
  • Straight main cutting edge

Advantage
  • Precision grinding for very accurate holes in terms of fit and shape for demanding requirements around dimensional tolerance
  • very precise guidance due to innovative geometry
  • High-performance coating provides high cutting parameters and long service life
  • the entire range is coordinated in terms of angle and diameter


Brand: ATORN
Material to be processed: Universal use
Cutting edge diameter: 9,02 mm
Tolerance of cutting edge diameter: h7
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 5xD
Type: HPC UNI
Coolant supply: Internal
Tool holding device: HA parallel shank
Angle of the tip: 140 Degree
Shank diameter: 10 mm
Chip flute length: 61 mm
Length: 103 mm
f steel 1000: 0,27 mm/r
DIN: 6537

ATORN-No.: 10912832

EAN no.: 4050293369755

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

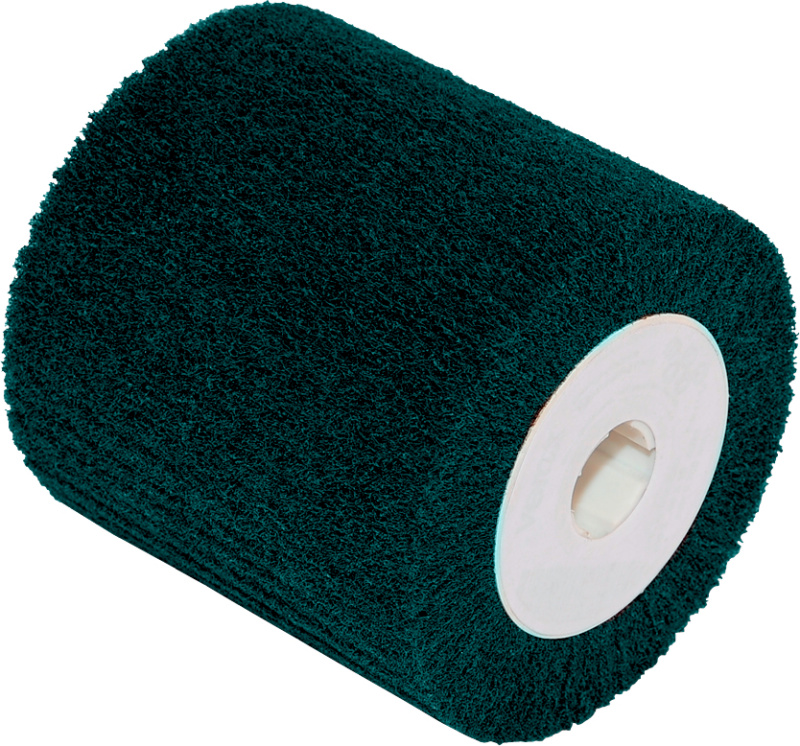

  • ATORN non-woven abrasive flap wheel colour, 115x100x19 mm, G280-320, green
  •
