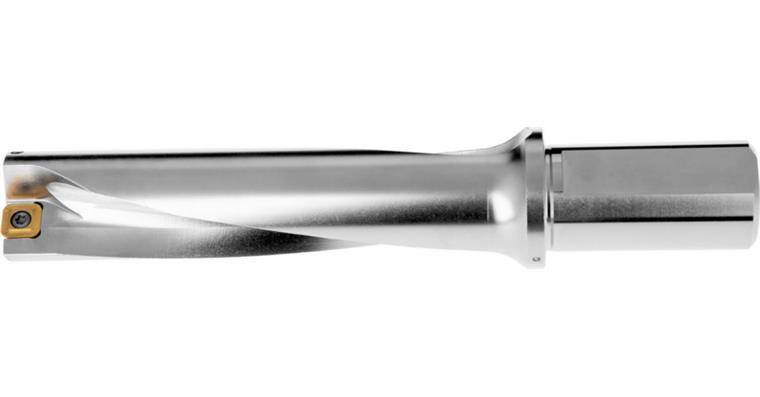

Index. ins. dr. bit 804D-39-156-S32 4xD dia.39.0 w/index. ins. XPET 12T3..

Index. ins. dr. bit 804D-39-156-S32 4xD dia.39.0 w/index. ins. XPET 12T3..

Index. ins. dr. bit 804D-39-156-S32 4xD dia.39.0 w/index. ins. XPET 12T3..
Item no: 1011180 522

Online price:

Available for immediate delivery

Application
High-performance indexable insert drilling tool for reliable drilling in numerous materials.

Execution
Drilling depth max. 4xD

Advantage
  • Suitable for drilling:
  • Blind holes and through-bores, cross holes, off-centre drill holes and stacked drill holes
  • Helical interpolation, plunging, drilling on concave and angled surfaces
  • Drilling with interrupted cuts
  • Suitable for chamfer drilling


Brand: DORMER PRAMET
Max. drilling depth (D): 4xD
Angle of the tip: 90 Degree
Coolant supply: Internal
Cutting edge diameter (DC): 39 mm
Shank diameter (DCON MS): 32 mm
Max. drilling depth (LU): 167 mm
Projecting length (LPR): 181 mm
Length (OAL): 241 mm
Collar diameter (DF): 42 mm
Shaft length (LS): 60 mm
Suitable for indexable inserts: SC.. 1204.. | XP.T 12T3
Number of cutting edges: 2 PCS
Coupon code: DORMER1011180522

Manufacturer part no.: 6759008

EAN no.: 3603602943545

Product Datasheet
