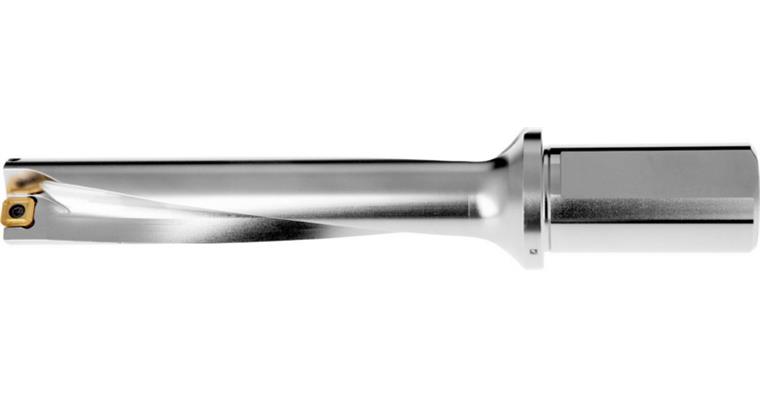

Index. ins. drill bit 805D-19-95-S25 5xD dia.19.0 w/index. ins. XPET 0602..

Index. ins. drill bit 805D-19-95-S25 5xD dia.19.0 w/index. ins. XPET 0602..

Index. ins. drill bit 805D-19-95-S25 5xD dia.19.0 w/index. ins. XPET 0602..
Item no: 1011180 700

Online price:

Available for immediate delivery

Application
High-performance indexable insert drilling tool for reliable drilling in numerous materials.

Execution
Drilling depth max. 5xD

Advantage
  • Suitable for drilling:
  • Blind holes and through-bores, cross holes, off-centre drill holes and stacked drill holes
  • Helical interpolation, plunging, drilling on concave and angled surfaces
  • Drilling with interrupted cuts
  • Suitable for chamfer drilling


Brand: DORMER PRAMET
Max. drilling depth (D): 5xD
Angle of the tip: 90 Degree
Coolant supply: Internal
Cutting edge diameter (DC): 19 mm
Shank diameter (DCON MS): 25 mm
Max. drilling depth (LU): 100,5 mm
Projecting length (LPR): 120 mm
Length (OAL): 176 mm
Collar diameter (DF): 35 mm
Shaft length (LS): 56 mm
Suitable for indexable inserts: SC.. 0502.. | XP.T 0602
Number of cutting edges: 2 PCS
Coupon code: DORMER1011180700

Manufacturer part no.: 6759009

EAN no.: 3603602943552

Product Datasheet
