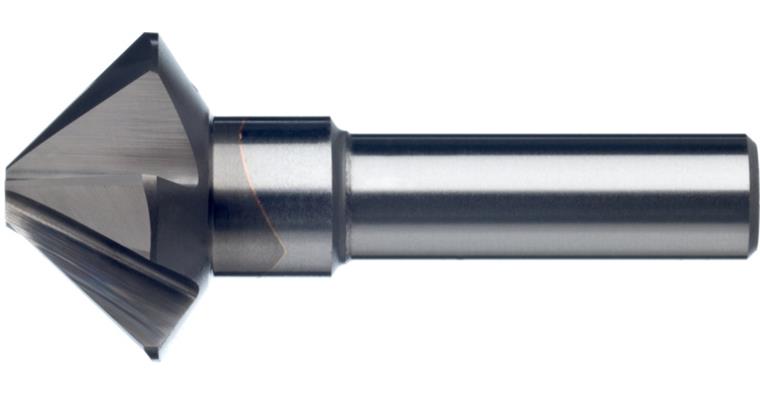

ATORN countersink, 90°, VHM, multi-blade cutter, T=5, 12.4 x 56 mm

ATORN countersink, 90°, VHM, multi-blade cutter, T=5, 12.4 x 56 mm

ATORN countersink, 90°, VHM, multi-blade cutter, T=5, 12.4 x 56 mm
Item no: 1012276 102

Online price:

Availability on demand

Application
For countersinking 90° in the material groups steel, stainless steel, (non-ferrous metals), (cast materials) and special alloys up to a strength of 60 HRC.

Execution
profile-ground multi-edge countersink with radial relief

Advantage
  • excellent service life characteristics in Hardox 400 and 500, Creusabro, Inconel, Nimonic, Hastelloy, Monel, manganese-hardened steel, hardened steels up to 60 HRC, titanium and titanium alloy materials
  • innovative and patented cutter geometry with a large number of cutters ensures excellent cutting performance and good surface qualities

Notes
Solid carbide head and steel shank

Brand: ATORN
Countersink angle: 90 Degree
Cutting material: SC
Surface: Uncoated
Number of cutting edges: 5 PCS
Tool holding device: HA parallel shank
Spot-facer diameter: 12,4 mm
Tip diameter: 4,0 mm
Length: 56 mm
Shank diameter: 8 mm
f steel 1300: 0,05 mm/r

ATORN-No.: 10644301

EAN no.: 4050293069426

Product Datasheet Datasheet cutting values
