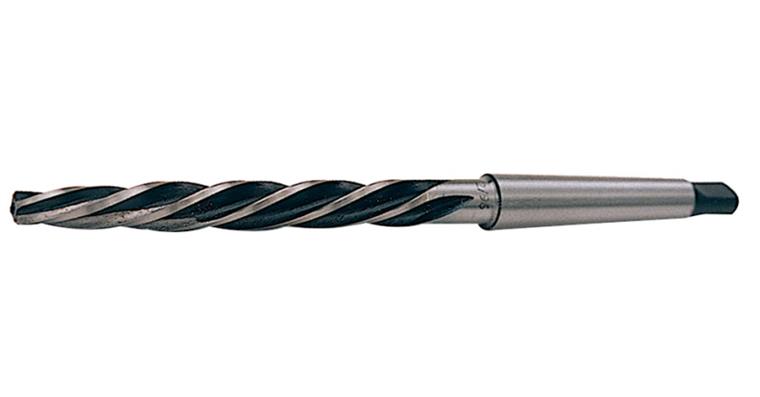

Rivet hole reamer DIN 311 spiral-fluted HSS 21.0 mm

Rivet hole reamer DIN 311 spiral-fluted HSS 21.0 mm

Rivet hole reamer DIN 311 spiral-fluted HSS 21.0 mm
Item no: 1013450 116

Online price:

Still in stock: 9

Application
For reaming offset holes opposite each other that must be bolted or riveted together.

Execution
  • With Morse taper shank
  • Right-cutting
  • Anticlockwise spiral approx. 25°
  • Arched tooth back
  • Cutting length, 1/3 tapered, 2/3 straight


Brand: LIZZARD
Min./max. cutting edge diameter: 14.7-21 mm
Tolerance of cutting edge diameter: k10
Groove type: Left-hand twist, 25°
Morse taper size: MK 3
Length: 271 mm
Cutting edge length: 155 mm
Shank style: Morse taper
Cutting material: HSS
Min. diameter: 4,5 mm
Max. diameter: 31,0 mm
f steel 1000: 0,25 mm/r
Coolant supply: External
Cutting direction: Right-hand cutting
DIN: 311
Surface: Vaporised
