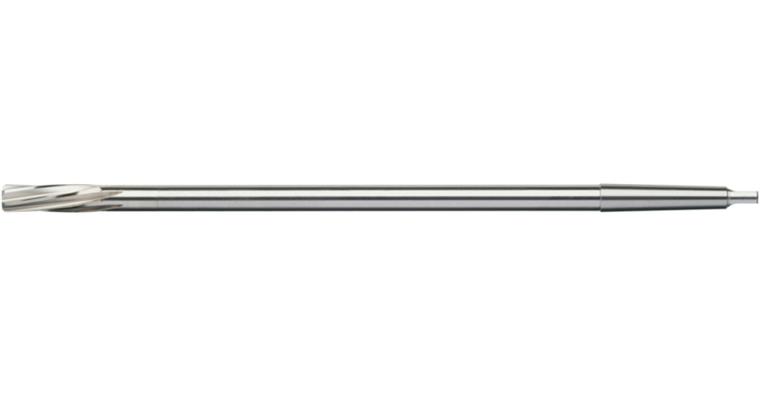

ATORN long reamer HSSE T=8 B, 10° 22.0 mm H7 x 280mm x 28mm MK sim. to DIN 208

ATORN long reamer HSSE T=8 B, 10° 22.0 mm H7 x 280mm x 28mm MK sim. to DIN 208

ATORN long reamer HSSE T=8 B, 10° 22.0 mm H7 x 280mm x 28mm MK sim. to DIN 208
Item no: 1013520 106

Online price:

Still in stock: 2

Application
for producing H7 fit tolerances in deep-set or difficult-to-reach through holes on conventional machines and NC machines up to 1000 N/mm².

Execution
10° left-hand spiral, type B, long design

Advantage
  • good bore hole quality (dimensional tolerance, roundness, surface quality)
  • long design ensures good accessibility for deep-set or difficult-to-reach drill holes


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Tool holding device: Morse taper shank
Groove type: Left-hand twist, 10°
Surface: Uncoated
Cutting edge diameter: 22 mm
Tolerance of fit: H7
Length: 280 mm
Cutting edge length: 28 mm
Projecting length: 200 mm
Morse taper size: MK 2
Number of cutting edges: 8 PCS
f steel 1000: 0,25 mm/r
DIN: 208 similar

ATORN-No.: 10440247

EAN no.: 4050293013726

Product Datasheet Datasheet cutting values
