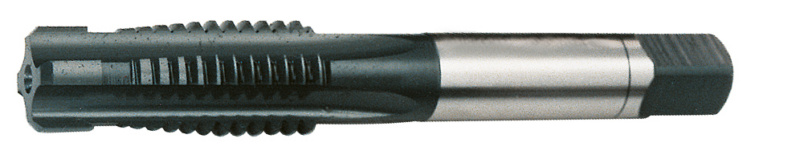

Hand tap DIN 352 no. 2 second tap HSS-E M3

Hand tap DIN 352 no. 2 second tap HSS-E M3

Hand tap DIN 352 no. 2 second tap HSS-E M3
Item no: 1014024 104

Online price:

Still in stock: 3

Application
For production of standard ISO DIN 13 metric threads. For hard-to-machine materials such as heat-, rust- and acid-resistant steel, bronze and thermosetting plastic, up to approx. 1200 N/mm2 strength.

Execution
  • Second tap with chamfer shape D with two rings
  • Right-cutting
  • Straight-grooved
  • HSSE, surface-treated


Brand: LIZZARD
Thread type x nominal diameter: M3
Pitch: 0,5 mm
Core hole diameter: 2,50 mm
Length: 40 mm
Shank diameter: 3,5 mm
Shank square: 2,7 mm
Colour ring system: Stainless steels
Design: Second tap
Shank style: Cylindrical with square drive
Thread type: Metric thread
Lead angle shape: D
DIN: 352
Cutting material: HSSE
Cutting direction: Right-hand cutting
Hole type: Clearance/blind hole ≤ 2.5xD
Surface: Vaporised
Tolerance of screw taps: 6H
Nominal diameter: 3 mm
Twist angle: 0°

EAN no.: 4024496017232

Product Datasheet
