ATORN hand tap set HSSE-PM A/D/C 352 0° M4 0.7 mm ISO2 x D/S 3xD

ATORN hand tap set HSSE-PM A/D/C 352 0° M4 0.7 mm ISO2 x D/S 3xD

ATORN hand tap set HSSE-PM A/D/C 352 0° M4 0.7 mm ISO2 x D/S 3xD
Item no: 1014060 104

Online price:

Still in stock: 5

Application
For manually tapping metric threads in through holes and blind holes in the (steel), stainless steel, (cast) and special alloy material groups up to a strength of 1300 N/mm² in single part production.

Execution
Set consisting of taper tap (form A), second tap (form D) and third tap (form C)

Advantage
Long service life and high level of process reliability thanks to innovative cutting geometry for machining high-strength steel


Brand: ATORN
Material to be processed: Universal use
Type: UNI MAX 1300 N/mm2
Design: Set
Thread type: Metric thread
Thread type x nominal diameter: M4
Core hole diameter: 3,3 mm
Pitch: 0,7 mm
Cutting material: HSSE-PM
Surface: Nitrated
Shank square: 3,4 mm
Hole type: Clearance/blind hole ≤ 3xD
Length: 45 mm
Tolerance of screw taps: ISO 2X (6HX)
Shank diameter: 4,5 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 2
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 1
Overall stainless steel suitability (Eignung Edelstahl ): 3
fitness not iron total (Eignung NE-Metalle): 2
Cutting speed (cast) suitability (Eignung Guss): 1
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 2
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 352

ATORN-No.: 10470541

EAN no.: 4050293015706

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE B 374 0° MF38 1.5 mm ISO2 D 3xD CNC P
  •
    ATORN screw tap HSSE-PM TiAlN IC C 371 0° M5 0.8 mm ISO2 x D/S 3xD CNC
  •
    ATORN twist drill bit set N HSS steam-treated DIN 338 D 1.0-10.0 mm, 0.5 mm
  •
    ATORN hand tap set HSSE-PM A/D/C 352 0° M5 0.8 mm ISO2 x D/S 3xD
  •
    ATORN HPC POWER SC end mill, STAINLESS STEEL, 10.0 x 22 x 32 x 72 mm HA, VA long
  •
    ATORN SC torus mill. cutt., extra-long 6x10x60x100 mm T=4 HA r=0.5 RockTec PRO
    84,48 €
  • ATORN SC high-feed mill. cutt., long 12x6.8x56x120 mm r=1.9 T=4 HA RockTec PRO
    186,56 €
  • ATORN SC torus mill. cutt. w/ HA shaft diameter 8.0 x 33 x 80 mm T=3 radius 0.5
  •

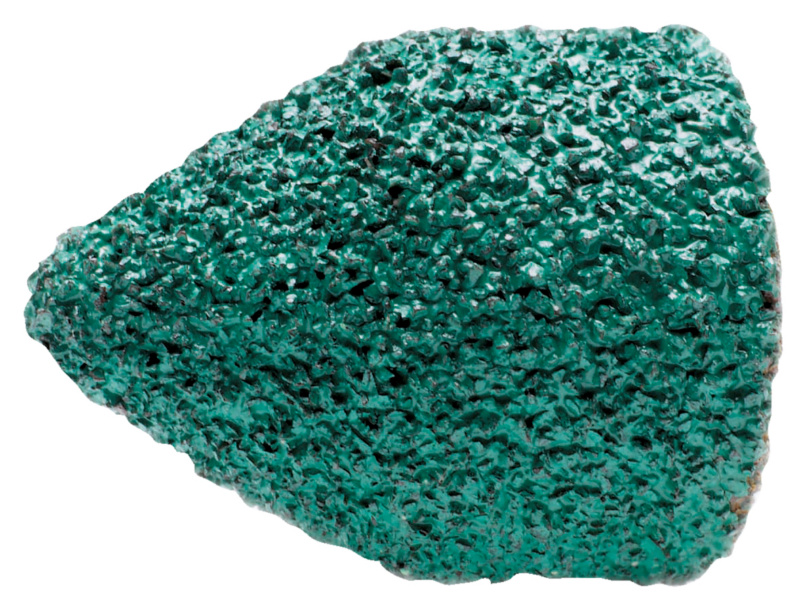

    Abrasive cap NKS green conical end grain 150 dia. x head height 7x13 mm
