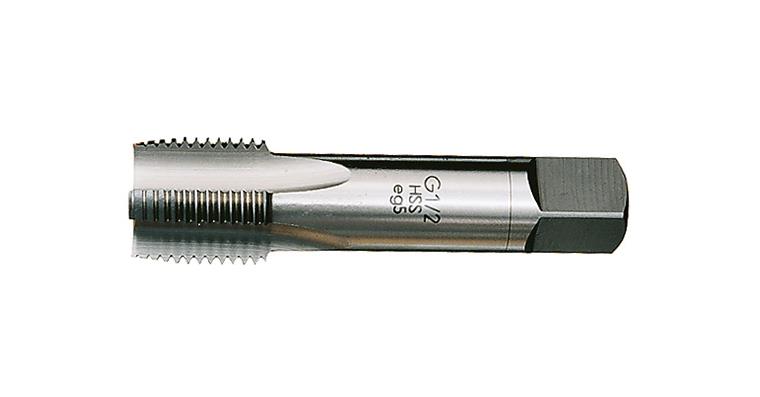

Hand tap DIN 5157 no. 1 taper tap HSS G 3/4

Hand tap DIN 5157 no. 1 taper tap HSS G 3/4

Hand tap DIN 5157 no. 1 taper tap HSS G 3/4
Item no: 1014069 106

Online price:

Available in 8-10 working days.

Application
For creating cylindrical Whitworth pipe thread DIN ISO 228 (formerly DIN 259). For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Taper tap with chamfer shape D with one ring
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter in inches: G 3/4 in
Core hole diameter: 24,50 mm
Length: 90 mm
Shank diameter: 2 mm
Shank square: 16 mm
Colour ring system: Steels
Design: Taper tap
Shank style: Cylindrical with square drive
Thread type: Pipe thread
Lead angle shape: D
DIN: 5157
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance hole ≤ 3xD
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter in inches: 3/4 in
Number of thread starts per inch: 14
Twist angle: 0°

EAN no.: 4024496019649

Product Datasheet
