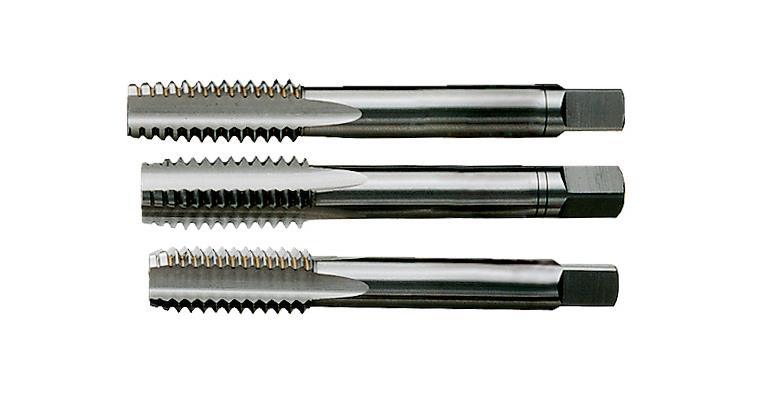

Hand tap set 3 pieces DIN 352 HSS UNC 5/16

Hand tap set 3 pieces DIN 352 HSS UNC 5/16

Hand tap set 3 pieces DIN 352 HSS UNC 5/16
Item no: 1014070 111

Online price:

Still in stock: 7

Application
For the production of American Unified coarse threads UNC ANSI-B 1.1. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Set containing taper tap (shape A), second tap (shape D) and third tap (plug) (shape C)
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter in inches: UNC 5/16 in
Nominal diameter in inches: 5/16 in
Number of thread starts per inch: 18
Core hole diameter: 6,60 mm
Length: 63 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Twist angle: 0°
Colour ring system: Steels
Included in delivery: Nr. 1 Vorschneider, DIN-Anschnitt Form A (6 - 8 Gang)
Nr. 2 Mittelschneider, DIN-Anschnitt Form D (3,5 - 5 Gang)
F Fertigschneider, DIN-Anschnitt Form C (2 - 3 Gang)
Shank style: Cylindrical with square drive
Design: Set
Thread type: UNC
DIN: 2184-2
Cutting direction: Right-hand cutting
Cutting material: HSS
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps: 6H

EAN no.: 4024496019830

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • EINLIPPEN-TIEFLOCHBOHRER E80 40XD MIT TICN VHM-KOPF GERADE HA Ø 15,5
  •
    ATORN solid carbide deburring tool, spiral dia. 16x11.2x93 mm T=5 HA RockTec PRO
  •
    LIZZARD Spannzange ER 16 HP Ø 3,0 metallisch abgedichtet Rundlauf 0,005 mm
  •
    LIZZARD Spannzange ER 20 HP Ø 2,5 metallisch abgedichtet Rundlauf 0,005 mm
  •
    ATORN surface chuck (Weldon) HSK100 (ISO 12164) dia. 6 mm A=200 mm
  •
    ATORN gripper jaws internal hardened 1.5 mmx60° M20 spacing 43 mm
  •

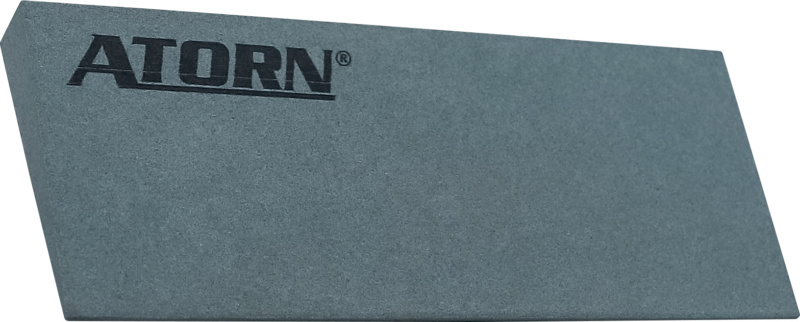

    ATORN gouge stone, 115 x 45 x 10 x 3 mm, fine, silicon carbide
