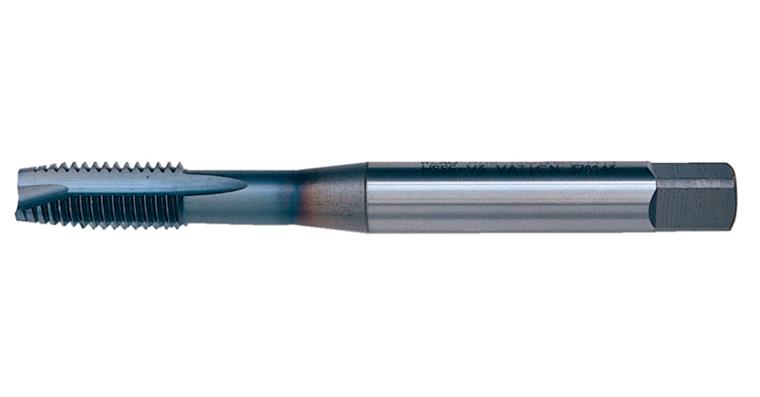

Through hole screw tap M DIN 371 shape B 2xD HSS-E-TiCN for VA steels M3

Through hole screw tap M DIN 371 shape B 2xD HSS-E-TiCN for VA steels M3

Through hole screw tap M DIN 371 shape B 2xD HSS-E-TiCN for VA steels M3
Item no: 1014333 203

Online price:

Available for immediate delivery

Application
Metric thread
Through holes
Max. drilling depth 2xD
VA steels up to 1,000 N/mm2

Execution
Spiral point

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M3
Max. thread depth: 2xD
Pitch: 0,5 mm
Cutting material: HSSE
Surface: TiCN
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 56 mm
Cutting edge length: 10 mm
Core hole diameter: 2,50 mm
Shank diameter: 3,5 mm
Shank square: 2,7 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 3 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
