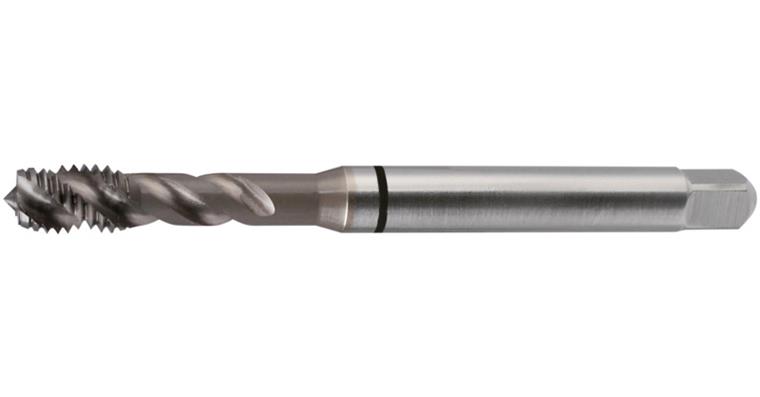

Machine tap M Synchro DIN 376 45° shape C 2.0xD HSS-E-PM-TiCN M12

Machine tap M Synchro DIN 376 45° shape C 2.0xD HSS-E-PM-TiCN M12

Machine tap M Synchro DIN 376 45° shape C 2.0xD HSS-E-PM-TiCN M12
Item no: 1014467 112

Online price:

Available in 6-8 working days.

Application
- Metric thread
- Blind holes
- Max. drilling depth 2xD
- For universal application

Execution
  • DIN type C (2-3 chamfer threads)
  • Right-hand spiral grooves approx. 45°
  • Tolerance range 6HX
  • DIN 371/376
  • HSSE-PM

Notes
Synchro tool for CNC machines (rigid or with minimal length compensation clamping)

Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): 6HX
Hole type: Blind hole ≤ 2xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSS-PM
Surface: TiCN
Pitch: 1,75 mm
Twist angle: 45° (right)
DIN: 376
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,20 mm
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3
