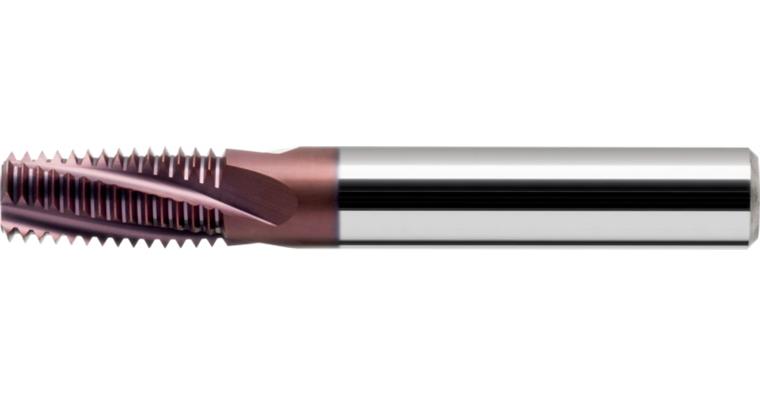

ATORN thread milling cutter SC-TIAlN 0.5 mm 3.8 mm 10.3 mm

ATORN thread milling cutter SC-TIAlN 0.5 mm 3.8 mm 10.3 mm

ATORN thread milling cutter SC-TIAlN 0.5 mm 3.8 mm 10.3 mm
Item no: 1014632 102

Online price:

Available in 4-6 working days.

Application
For producing metric right-hand and left-hand threads on CNC machines in through holes and blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution
Precision-ground thread milling cutter

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • High-performance coating and cemented carbide ensure long service life


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Coolant supply (IK): External
Tool holding device: HA parallel shank
Cutting edge diameter (d1): 3,8 mm
Pitch: 0,5 mm
Suitable for metric fine threads from: MF5
Length (L1): 58 mm
Cutting edge length (l2): 10,3 mm
Shank diameter: 6 mm
Number of cutting edges: 3 PCS
f steel 1000: 0,04 mm/r

ATORN-No.: 11940179

EAN no.: 4050293206081

Product Datasheet Datasheet cutting values
