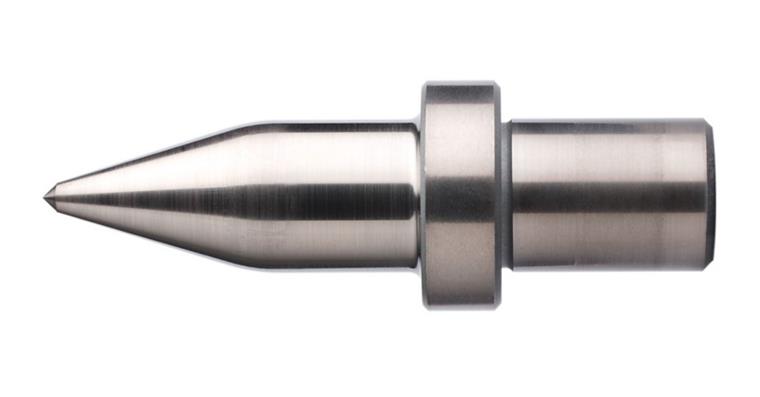

Carbide thermic drill bit Flowdrill standard long dia. 14.8 mm M16 with collar

Carbide thermic drill bit Flowdrill standard long dia. 14.8 mm M16 with collar

Carbide thermic drill bit Flowdrill standard long dia. 14.8 mm M16 with collar
Item no: 1014755 110

Online price:

Available in 4-6 working days.

Application
The thermic drill bit can be used in all common materials such as steel, stainless steel, aluminium, copper, brass and in high-strength special materials.

Execution
  • This tool creates a ring-shaped bulge on the surface, as the high-flowing material is simply beaded over
  • This produces a maximum passage length
  • A flowdrill is a carbide tool used to create additional wall thickness by displacing raw material
  • This locally produced extra material thickness can be used for a load-bearing thread, as a soldering and welding zone, for sealing surfaces or as a bearing point
  • The tool diameter can be between 1 and 40 mm and the wall thickness to be machined between 0.5 and 10 mm

Advantage
  • Localised increase in wall thickness
  • Sufficient thread length
  • Faster process cycle
  • High accuracy and long service life
  • Suitable for series production, e.g. on CNC
    • Chipless


Brand: FLOWDRILL
Thread dimension: M16
Core hole diameter: 14,8 mm
Min./max. material thickness: 3.4-4.8 mm
Shank diameter: 16 mm
Effective length: 35,1 mm
Max. feed speed: 150 mm/min
Power rating: 2,5 kW
Cutting material: Carbide
Max. material thickness: 4,8 mm
Type: Long/standard

Manufacturer part no.: 148L000
