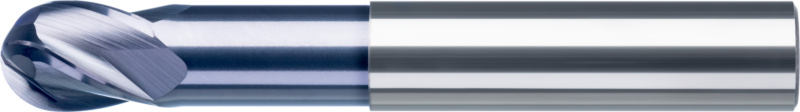

ATORN solid carbide end mill T=3 10.00 mm ultra coated DIN 6535HB

Versions

Item no: 1016607 115

Online price:

Catalogue price: You save:

Available for immediate delivery

Min. order quantity: 1

Application
End mill for universal use when plunge milling, groove milling and keyway cutting as well as face milling and peripheral milling.

Execution

solid carbide ultra-fine grain
straight shank in accordance with DIN 6535 HB
centre cutting
with clearance
with edge protection chamfer
ULTRA-coated

Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 22 mm
Clearance length: 32 mm
Length: 72 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 9,8 mm
Shank diameter: 10 mm
fz steel 1000: 0,06 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910790

EAN no.: 4050293091717

Product Datasheet Datasheet cutting values
