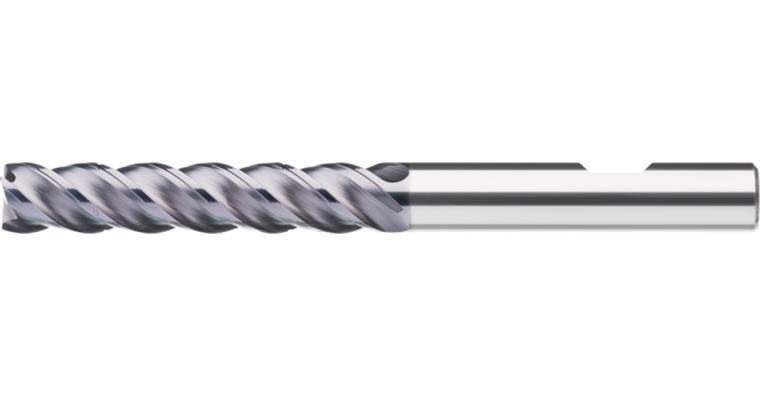

ATORN SC TVC end mill ULTRA 6x32x72 mm T4 HB shank

ATORN SC TVC end mill ULTRA 6x32x72 mm T4 HB shank

ATORN SC TVC end mill ULTRA 6x32x72 mm T4 HB shank
Item no: 1016667 306

Online price:

Available for immediate delivery

Application
The TVC end mills are optimally suited for processing with modern milling strategies. Cutting edge lengths of 3-5xD, reinforced cores and specially developed chip breaker geometries allow high working depths with maximum process reliability.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HB
  • ULTRA coated
  • Centre cutting and edge protection chamfer
  • Special chip breakers for short chips
  • Uneven twist angle


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Extra long
Cutting edge diameter: 6 mm
Cutting edge length: 32 mm
Length: 72 mm
Edge protection chamfer length: 0,12 mm
Shank diameter: 6 mm
fz steel 1000: 0.07
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264495

EAN no.: 4066107005511

Product Datasheet
