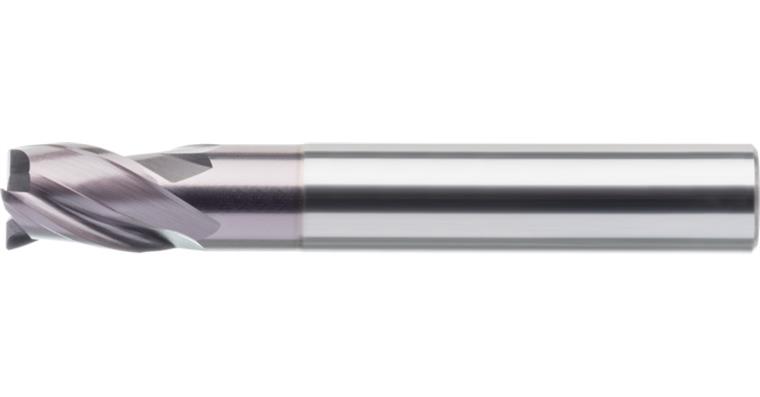

ATORN HPC POWER SC groove end mill, UNI, 16.0x16x32x82 mm HA, type N, short

ATORN HPC POWER SC groove end mill, UNI, 16.0x16x32x82 mm HA, type N, short

ATORN HPC POWER SC groove end mill, UNI, 16.0x16x32x82 mm HA, type N, short
Item no: 1016670 115

Online price:

Only while stocks last: 10

Application
HPC end mill for universal application, ideal for groove milling.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA high-performance coating
  • Centre cutting
  • Unequal twist angle 33°/35°/37°
  • Unequal cutting edge pitch
  • With edge protection chamfer
  • With clearance
  • Cutting edge with edge preparation

Advantage
  • Increased material removal rate
  • High level of process reliability up to 2xD
  • Higher feed rates and cutting depths possible
  • Reduces vibrations
  • Ideal for groove milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 33° | 35° | 37°
Tool holding device: HA parallel shank
Construction length: Short
Cutting edge diameter: 16 mm
Cutting edge length: 16 mm
Clearance length: 32 mm
Length: 82 mm
Edge protection chamfer length: 0,3 mm
Clearance diameter: 15 mm
Shank diameter: 16 mm
fz steel 1000: 0,16 mm
Overall stainless steel suitability: 2
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10617378

EAN no.: 4050293411553

Product Datasheet Datasheet cutting values
