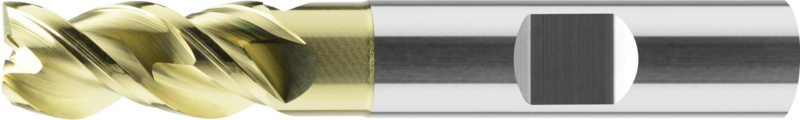

SC HPC roughing cutter ZRN 43/47° normal w. clearance HB shank T=3 dia. 8x63 mm

SC HPC roughing cutter ZRN 43/47° normal w. clearance HB shank T=3 dia. 8x63 mm

SC HPC roughing cutter ZRN 43/47° normal w. clearance HB shank T=3 dia. 8x63 mm
Item no: 1016758 208

Online price:

Still in stock: 6

Application
For roughing with the highest standards.

Execution
  • Normal
  • Robust roughing cutter with reinforced core
  • Polished chip spaces
  • Special edge treatment

Advantage
  • Titanium-free ZrN coating for best sliding properties developed for aluminium processing
  • Maximum machining performance and unbeatable surface quality


Brand: LIZZARD
Material to be processed: Aluminium | Copper
Cutting edge diameter: 8 mm
Cutting edge length: 21 mm
Clearance length: 25 mm
Length: 63 mm
Clearance diameter: 7,8 mm
Shank diameter: 8 mm
Edge protection chamfer length: 0,2 mm
Number of cutting edges (Z): 3 PCS
Twist angle: 43° | 47°
Type: HPC
Construction length: Normal
Cutting direction: Right-hand cutting
fz aluminium: 0,067 mm

Versions
loading
Keywords:

You might also be interested in this

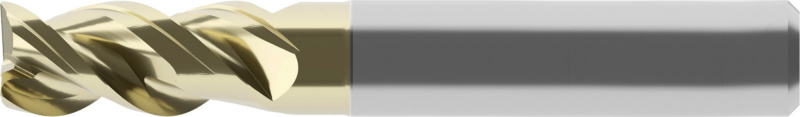

  • SC HPC roughing cutter ZRN 43/47° normal w. clearance HA shank T=3 dia. 8x63 mm
  •
