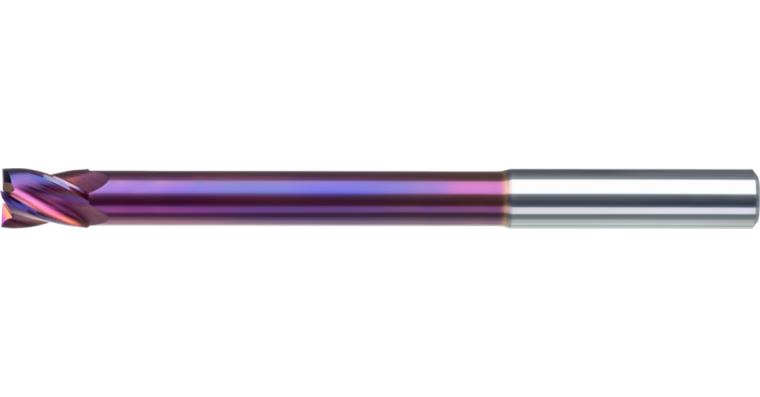

ATORN RockTec PRO end mill, extra-long 12x16x100x150 mm T=4 HA

ATORN RockTec PRO end mill, extra-long 12x16x100x150 mm T=4 HA

ATORN RockTec PRO end mill, extra-long 12x16x100x150 mm T=4 HA
Item no: 1016781 412

Online price:

Still in stock: 3

Application
End mill in extra-long version, for machining materials up to 65 HRC, e.g. in die and mould making.

Execution
  • Ultra Micro fine grain cutting material
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • with clearance
  • Type H
  • With RockTec PRO coating

Advantage
  • optimum chip removal and temperature resistance
  • optimised geometry for machining hard materials
  • maximum service life due to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Extra long
Cutting edge diameter: 12 mm
Cutting edge length: 16 mm
Clearance length: 100 mm
Length: 150 mm
Clearance diameter: 11 mm
Shank diameter: 12 mm
fz hard 65 HRC: 0,077 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264607

EAN no.: 4066107031589

Product Datasheet Datasheet cutting values
