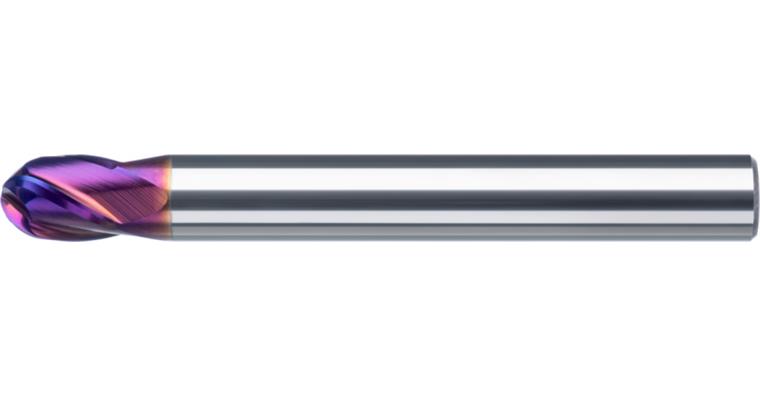

ATORN SC ball nose end mill 6x7x65 mm T=4 HA RockTec PRO - coated

ATORN SC ball nose end mill 6x7x65 mm T=4 HA RockTec PRO - coated

ATORN SC ball nose end mill 6x7x65 mm T=4 HA RockTec PRO - coated
Item no: 1016795 107

Online price:

Available for immediate delivery

Application
Radius milling cutter, standard design, for machining materials up to 65 HRC, e.g. in dip cutting and mould construction.

Execution
  • Cutting material, Ultra Micro fine grain
  • Cutting edge finish
  • HA shaft in line with DIN 6535
  • Clearance
  • Type H
  • With RockTec PRO coating
  • Radius tolerance = +/- 0.005 mm

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life thanks to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 6 mm
Cutting edge length: 7 mm
Length: 65 mm
Shank diameter: 6 mm
fz hard 65 HRC: 0,047 mm

ATORN-No.: 11264459

EAN no.: 4066107007973

Product Datasheet Datasheet cutting values
